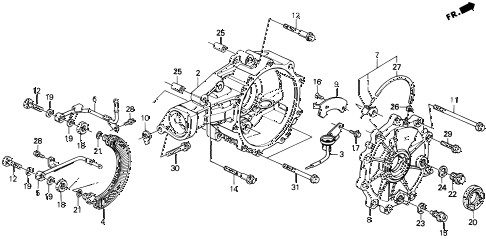

1991 LEGEND L 2 DOOR 5MT MT DIFFERENTIAL CARRIER diagram
Back to Top
plug, breather tubecarrier, differentialpipe, oil guidecooler, differential oiljoint a, watertube assy., differential breathercover, differential carrierplate, breathershim a (26mm) (1.9)shim b (26mm) (2.0)shim c (26mm) (2.1)shim d (26mm) (2.2)shim e (26mm) (2.3)shim f (26mm) (2.4)shim g (26mm) (2.5)shim h (26mm) (2.6)shim i (26mm) (2.7)shim j (26mm) (2.8)shim k (26mm) (2.9)shim l (26mm) (3.0)shim a (26mm) (1.9)shim b (26mm) (2.0)shim c (26mm) (2.1)shim d (26mm) (2.2)shim e (26mm) (2.3)shim f (26mm) (2.4)shim g (26mm) (2.5)shim h (26mm) (2.6)shim i (26mm) (2.7)shim j (26mm) (2.8)shim k (26mm) (2.9)shim l (26mm) (3.0)bolt, flange (12x133)bolt, jointbolt, jointbolt, special flange (12x60)bolt, sealing (12x60)bolt, plug (14mm)screw, special flat (6x14)bolt, special flange (6x12)nut, hex. (20mm)nut, hex. (20mm)washer, sealing (12mm)washer, sealing (12mm)washer, sealing (12mm)washer, sealing (12mm)oil seal (42x63x9) (arai)o-ring (24.5x1.9)o-ring (24.5x1.9)bolt, drain plug (20mm)washer, drain plug (14mm)washer, drain plug (20mm)pin, dowel (14x20)pin, dowel (14x20)clamp, tube (d8.5)bulk hose, vacuum (4.5x1000)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (10x30)bolt, flange (12x40)bolt, flange (12x70)
