METER COMPONENTS
View large diagramHide diagramView diagramView printable catalogTranslate

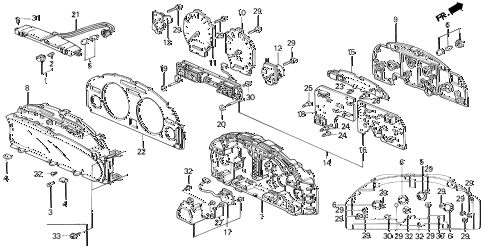

1991 LEGEND L*MOQUETTE 2 DOOR 4AT METER COMPONENTS diagram

  • 001

    socket assy., bulb (14v 1.4w) (base:black) (ns)

    Part Number: 35505-SA5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.19

  • 002

    bulb (14v 1.4w)

    Part Number: 35506-SA5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    knob, trip (ns)

    Part Number: 37106-SB2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $9.68

  • 004

    gasket (ns)

    Part Number: 37115-SA0-601

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.87

  • 005

    bulb (14v 3.4w) (ns)

    Part Number: 37237-SD2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    bulb & socket (12v 3.4w cap) (ns)

    Part Number: 37238-SD2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.33

  • 007

    case assy.

    Part Number: 78110-SP0-A02

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    visor assy., meter

    Part Number: 78115-SP0-A02

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    cover

    Part Number: 78116-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    speedometer assy.

    Part Number: 78120-SP0-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 012

    meter assy., fuel

    Part Number: 78130-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    meter assy., temperature

    Part Number: 78135-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    panel, warning print

    Part Number: 78145-SP0-A02

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 017

    display, failure

    Part Number: 78150-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 019

    gasket

    Part Number: 78163-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 020

    gasket

    Part Number: 78163-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 021

    illumination assy.

    Part Number: 78166-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 022

    visor assy., meter (lower)

    Part Number: 78171-SP0-A11

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 023

    socket assy., bulb (base:black)

    Part Number: 78180-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 024

    bulb & socket assy. (14v 80ma)(base:black) (ns)

    Part Number: 78181-SF1-612

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.33

  • 025

    socket assy., bulb (14v-100ma)(base:brown)

    Part Number: 78182-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.67

  • 026

    bulb & socket assy.

    Part Number: 78182-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 027

    bulb & socket assy.

    Part Number: 78183-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    bulb & socket assy. (base:white)

    Part Number: 78184-SP0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 029

    screw-washer (3x30.5)

    Part Number: 90121-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 030

    screw-washer (3x10)

    Part Number: 90132-SL4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 031

    screw, tapping (4x8)

    Part Number: 93901-34120

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65

  • 032

    screw, tapping (4x10)

    Part Number: 93901-34220

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65

  • 033

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65
