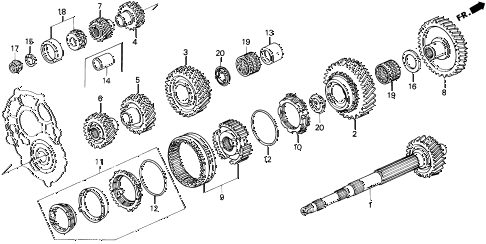

MT COUNTERSHAFT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: countershaft Part Number: 23220-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: gear, countershaft low Part Number: 23421-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: gear, countershaft second Part Number: 23431-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: gear, countershaft fifth Part Number: 23461-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: gear, countershaft fourth Part Number: 23481-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: gear, countershaft reverse Part Number: 23520-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: ring, blocking (78mm) Part Number: 23641-PR8-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $77.55

Ref #: 011	Honda Part: synchronizer set (79) Part Number: 23646-PR8-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $242.33

Ref #: 012	Honda Part: spring, synchronizer (78) Part Number: 23651-PR8-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.53

Ref #: 013	Honda Part: collar a, distance (38x47x33) (0.07-0.09) Part Number: 23911-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar b, distance (38x47x33) (0.03-0.05) Part Number: 23912-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar a, distance (38x47x33) (0.07-0.09) Part Number: 23911-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar b, distance (38x47x33) (0.03-0.05) Part Number: 23912-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: collar, distance (31x38x43.75) Part Number: 23915-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: washer c, spring (27mm) Part Number: 23927-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim a (60mm) (1.42) Part Number: 23971-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $8.83

Ref #: 016	Honda Part: shim b (60mm) (1.46) Part Number: 23972-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim c (60mm) (1.50) Part Number: 23973-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim d (60mm) (1.54) Part Number: 23974-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim a (60mm) (1.42) Part Number: 23971-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $8.83

Ref #: 016	Honda Part: shim b (60mm) (1.46) Part Number: 23972-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim c (60mm) (1.50) Part Number: 23973-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim d (60mm) (1.54) Part Number: 23974-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 017	Honda Part: nut, hex. (27mm) Part Number: 90202-PZ9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $9.45

Ref #: 018	Honda Part: bearing, needle (28x62x16) Part Number: 91102-PY5-008 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $79.27

Ref #: 019	Honda Part: bearing, needle (47x53x36) Part Number: 91107-PY5-008 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: damper, friction Part Number: 91211-PY5-008 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 001	Honda Part: countershaft Part Number: 23220-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: gear, countershaft low Part Number: 23421-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: gear, countershaft second Part Number: 23431-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: gear, countershaft fifth Part Number: 23461-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: gear, countershaft third Part Number: 23471-PY5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: gear, countershaft fourth Part Number: 23481-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: gear, countershaft reverse Part Number: 23520-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: ring, blocking (78mm) Part Number: 23641-PR8-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$77.55

Ref #: 011	Honda Part: synchronizer set (79) Part Number: 23646-PR8-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$242.33

Ref #: 012	Honda Part: spring, synchronizer (78) Part Number: 23651-PR8-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.53

Ref #: 013	Honda Part: collar a, distance (38x47x33) (0.07-0.09) Part Number: 23911-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar b, distance (38x47x33) (0.03-0.05) Part Number: 23912-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar a, distance (38x47x33) (0.07-0.09) Part Number: 23911-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: collar b, distance (38x47x33) (0.03-0.05) Part Number: 23912-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: collar, distance (31x38x43.75) Part Number: 23915-PY5-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: washer c, spring (27mm) Part Number: 23927-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim a (60mm) (1.42) Part Number: 23971-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$8.83

Ref #: 016	Honda Part: shim b (60mm) (1.46) Part Number: 23972-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim c (60mm) (1.50) Part Number: 23973-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim d (60mm) (1.54) Part Number: 23974-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim a (60mm) (1.42) Part Number: 23971-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$8.83

Ref #: 016	Honda Part: shim b (60mm) (1.46) Part Number: 23972-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim c (60mm) (1.50) Part Number: 23973-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: shim d (60mm) (1.54) Part Number: 23974-PY5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 017	Honda Part: nut, hex. (27mm) Part Number: 90202-PZ9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$9.45

Ref #: 018	Honda Part: bearing, needle (28x62x16) Part Number: 91102-PY5-008 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$79.27

Ref #: 019	Honda Part: bearing, needle (47x53x36) Part Number: 91107-PY5-008 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: damper, friction Part Number: 91211-PY5-008 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer
