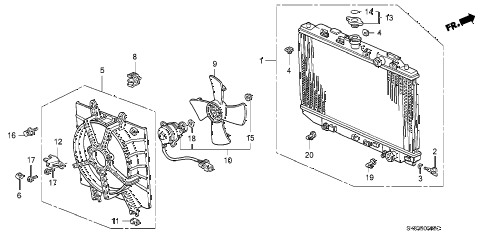

1992 INTEGRA GS 4 DOOR 4AT RADIATOR (SAK) diagram
  • 001

    radiator (sak)

    • Part Number: 19010-PR3-907

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    petcock, drain (toyo)

    • Part Number: 19011-PH2-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.23

  • 002

    petcock, drain (sak)

    • Part Number: 19011-PV0-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.23

  • 002

    petcock, drain (toyo)

    • Part Number: 19011-PH2-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.23

  • 002

    petcock, drain (sak)

    • Part Number: 19011-PV0-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.23

  • 003

    gasket, drain (toyo)

    • Part Number: 19012-PD2-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.35

  • 004

    nut, set (m6)

    • Part Number: 19014-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.43

  • 005

    shroud (sak)

    • Part Number: 19015-PR3-906

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    clip, harness

    • Part Number: 19017-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    clamp, harness

    • Part Number: 19019-PR3-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    fan comp., cooling

    • Part Number: 19020-P3R-305

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $50.80

  • 010

    motor, cooling fan (mitsuba)

    • Part Number: 19030-PR4-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    grommet

    • Part Number: 19032-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.57

  • 012

    clamp

    • Part Number: 19033-PR3-903

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    cap (sak)

    • Part Number: 19045-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    cap, seal

    • Part Number: 19046-PR3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    nut, hex. (5mm) (mitsuba)

    • Part Number: 90041-PG6-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.78

  • 016

    bolt-washer (6x20)

    • Part Number: 90042-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.83

  • 017

    screw-washer (4x12)

    • Part Number: 90050-PV0-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.15

  • 018

    washer, plain (7mm) (mitsuba)

    • Part Number: 90403-PA0-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.30

  • 019

    joint, oil cooler in. (atf)

    • Part Number: 19071-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 020

    joint, oil cooler outlet (atf)

    • Part Number: 19072-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $36.47
