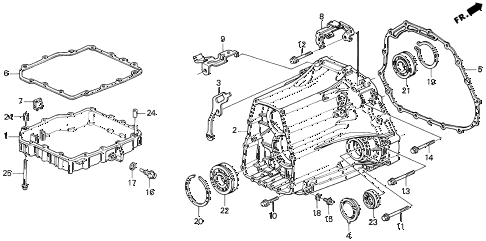

1992 LEGEND L*MOQUETTE 2 DOOR 4AT AT TRANSMISSION HOUSING diagram
Back to Top
pan, oilcase, transmissionhanger, transmissiongasket, oil panmagnet, transmissionstay, pick-up connectorstay, harnessbolt, flange (8x30)bolt, flange (8x45)bolt, flange (8x60)bolt, flange (8x45)bolt, flange (8x60)bolt, flange (8x45)bolt, flange (8x60)bolt, flange (8x53)bolt, sealing (8mm)bolt, plug (18mm)washer, drain plug (18mm)gasket (8mm)ring, snap (82.5mm)ring, snap (86mm)bearing, ball (29x82x22)bearing, ball (6011)oil seal (45x61x8) (arai)oil seal (45x61x8) (nok)oil seal (45x61x8) (arai)oil seal (45x61x8) (nok)pin, dowel (8x14)pin, dowel (8x14)bolt, flange (6x55)
