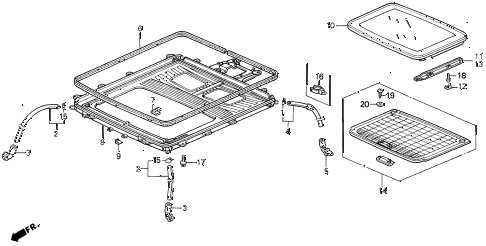

SUNROOF - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: clip, air hose (20.5mm) Part Number: 17348-673-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.50

Ref #: 002	Honda Part: tube, fr. drain vinyl (sunroof) Part Number: 70050-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $16.27

Ref #: 003	Honda Part: valve, fr. drain Part Number: 70052-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: tube, rr. drain (sunroof) Part Number: 70060-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $24.27

Ref #: 005	Honda Part: valve, rr. drain Part Number: 70062-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: seal, sunroof frame Part Number: 70080-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: rubber, fr. sunshade stopper Part Number: 70095-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.53

Ref #: 008	Honda Part: frame, sunroof Part Number: 70100-SP1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: nut, plate (5mm) Part Number: 70111-SP1-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.67

Ref #: 010	Honda Part: glass assy., roof Part Number: 70200-SP1-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: cover, r. stay Part Number: 70620-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: cap, stay cover Part Number: 70623-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.55

Ref #: 013	Honda Part: cover, l. stay Part Number: 70625-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. nh180l Part Number: 83210-SP1-A00ZA Standard Qty.: 001 Color: (SHIMMER GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. yr98l Part Number: 83210-SP1-A00ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. y31l Part Number: 83210-SP1-A00ZD Standard Qty.: 001 Color: (CREAM IVORY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. nh180l Part Number: 83210-SP1-A00ZA Standard Qty.: 001 Color: (SHIMMER GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. yr98l Part Number: 83210-SP1-A00ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. y31l Part Number: 83210-SP1-A00ZD Standard Qty.: 001 Color: (CREAM IVORY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: clip, air hose (16mm) Part Number: 90646-657-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.20

Ref #: 016	Honda Part: clip, slide roof drain tube Part Number: 91504-SE3-920 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.90

Ref #: 017	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-08 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.02

Ref #: 018	Honda Part: screw, pan (5x8) Part Number: 93500-05008-0A Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.52

Ref #: 019	Honda Part: screw, tapping (4x12) (po) Part Number: 93913-14280 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.55

Ref #: 020	Honda Part: washer, plain (5mm) Part Number: 94101-05700 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.53

Ref #: 001	Honda Part: clip, air hose (20.5mm) Part Number: 17348-673-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.50

Ref #: 002	Honda Part: tube, fr. drain vinyl (sunroof) Part Number: 70050-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$16.27

Ref #: 003	Honda Part: valve, fr. drain Part Number: 70052-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: tube, rr. drain (sunroof) Part Number: 70060-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$24.27

Ref #: 005	Honda Part: valve, rr. drain Part Number: 70062-SP0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: seal, sunroof frame Part Number: 70080-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: rubber, fr. sunshade stopper Part Number: 70095-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.53

Ref #: 008	Honda Part: frame, sunroof Part Number: 70100-SP1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: nut, plate (5mm) Part Number: 70111-SP1-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.67

Ref #: 010	Honda Part: glass assy., roof Part Number: 70200-SP1-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: cover, r. stay Part Number: 70620-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: cap, stay cover Part Number: 70623-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.55

Ref #: 013	Honda Part: cover, l. stay Part Number: 70625-SP1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. nh180l Part Number: 83210-SP1-A00ZA Standard Qty.: 001 Color: (SHIMMER GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. yr98l Part Number: 83210-SP1-A00ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. y31l Part Number: 83210-SP1-A00ZD Standard Qty.: 001 Color: (CREAM IVORY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. nh180l Part Number: 83210-SP1-A00ZA Standard Qty.: 001 Color: (SHIMMER GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. yr98l Part Number: 83210-SP1-A00ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: sunshade assy. y31l Part Number: 83210-SP1-A00ZD Standard Qty.: 001 Color: (CREAM IVORY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: clip, air hose (16mm) Part Number: 90646-657-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.20

Ref #: 016	Honda Part: clip, slide roof drain tube Part Number: 91504-SE3-920 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.90

Ref #: 017	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-08 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.02

Ref #: 018	Honda Part: screw, pan (5x8) Part Number: 93500-05008-0A Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.52

Ref #: 019	Honda Part: screw, tapping (4x12) (po) Part Number: 93913-14280 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.55

Ref #: 020	Honda Part: washer, plain (5mm) Part Number: 94101-05700 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.53
