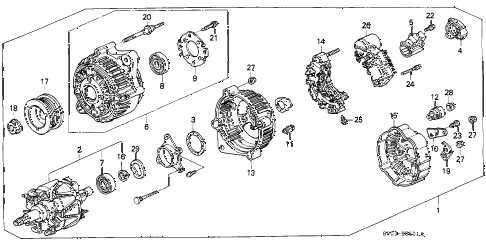

ALTERNATOR (DENSO) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: alternator assy. (clb18) (denso) Part Number: 31100-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: rotor assy. Part Number: 31101-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: seal, ring Part Number: 31103-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.38

Ref #: 004	Honda Part: seal, ring Part Number: 31104-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.00

Ref #: 005	Honda Part: holder assy., brush Part Number: 31105-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $31.73

Ref #: 006	Honda Part: frame assy., drive end Part Number: 31109-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: bearing, rr. generator Part Number: 31111-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $25.97

Ref #: 008	Honda Part: bearing, fr. generator Part Number: 31114-PT0-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $25.97

Ref #: 009	Honda Part: plate, retainer Part Number: 31116-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $8.83

Ref #: 010	Honda Part: plate, terminal Part Number: 31116-P13-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.78

Ref #: 011	Honda Part: bush, insulation Part Number: 31118-PT0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.70

Ref #: 012	Honda Part: bush, insulation Part Number: 31119-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.52

Ref #: 013	Honda Part: frame, rr. end Part Number: 31121-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $250.70

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $250.70

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $31.17

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $31.17

Ref #: 016	Honda Part: cover, bearing Part Number: 31138-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.68

Ref #: 017	Honda Part: pulley Part Number: 31141-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $79.03

Ref #: 018	Honda Part: nut, pulley lock Part Number: 31142-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.47

Ref #: 019	Honda Part: clip, wire Part Number: 31143-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.42

Ref #: 020	Honda Part: bolt, stud (6x68) Part Number: 31145-PD1-004 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.73

Ref #: 021	Honda Part: screw Part Number: 31146-PT0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.45

Ref #: 022	Honda Part: screw-washer Part Number: 31147-PT0-003 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.90

Ref #: 023	Honda Part: screw Part Number: 31147-P13-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.50

Ref #: 024	Honda Part: screw, wave washer Part Number: 31148-PT0-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.90

Ref #: 025	Honda Part: screw, wave washer Part Number: 31148-P13-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.50

Ref #: 026	Honda Part: regulator assy. Part Number: 31150-PR7-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $297.70

Ref #: 027	Honda Part: nut-washer (5mm) Part Number: 90231-PD1-014 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.37

Ref #: 028	Honda Part: nut, hex. (8mm) Part Number: 90232-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.35

Ref #: 029	Honda Part: washer Part Number: 90424-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.07

Ref #: 001	Honda Part: alternator assy. (clb18) (denso) Part Number: 31100-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: rotor assy. Part Number: 31101-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: seal, ring Part Number: 31103-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.38

Ref #: 004	Honda Part: seal, ring Part Number: 31104-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.00

Ref #: 005	Honda Part: holder assy., brush Part Number: 31105-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$31.73

Ref #: 006	Honda Part: frame assy., drive end Part Number: 31109-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: bearing, rr. generator Part Number: 31111-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$25.97

Ref #: 008	Honda Part: bearing, fr. generator Part Number: 31114-PT0-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$25.97

Ref #: 009	Honda Part: plate, retainer Part Number: 31116-PT0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$8.83

Ref #: 010	Honda Part: plate, terminal Part Number: 31116-P13-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.78

Ref #: 011	Honda Part: bush, insulation Part Number: 31118-PT0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.70

Ref #: 012	Honda Part: bush, insulation Part Number: 31119-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.52

Ref #: 013	Honda Part: frame, rr. end Part Number: 31121-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$250.70

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: rectifier assy. Part Number: 31127-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$250.70

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$31.17

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 015	Honda Part: cover, rr. end Part Number: 31135-PY3-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$31.17

Ref #: 016	Honda Part: cover, bearing Part Number: 31138-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.68

Ref #: 017	Honda Part: pulley Part Number: 31141-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$79.03

Ref #: 018	Honda Part: nut, pulley lock Part Number: 31142-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.47

Ref #: 019	Honda Part: clip, wire Part Number: 31143-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.42

Ref #: 020	Honda Part: bolt, stud (6x68) Part Number: 31145-PD1-004 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.73

Ref #: 021	Honda Part: screw Part Number: 31146-PT0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.45

Ref #: 022	Honda Part: screw-washer Part Number: 31147-PT0-003 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.90

Ref #: 023	Honda Part: screw Part Number: 31147-P13-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.50

Ref #: 024	Honda Part: screw, wave washer Part Number: 31148-PT0-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.90

Ref #: 025	Honda Part: screw, wave washer Part Number: 31148-P13-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.50

Ref #: 026	Honda Part: regulator assy. Part Number: 31150-PR7-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$297.70

Ref #: 027	Honda Part: nut-washer (5mm) Part Number: 90231-PD1-014 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.37

Ref #: 028	Honda Part: nut, hex. (8mm) Part Number: 90232-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.35

Ref #: 029	Honda Part: washer Part Number: 90424-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.07
