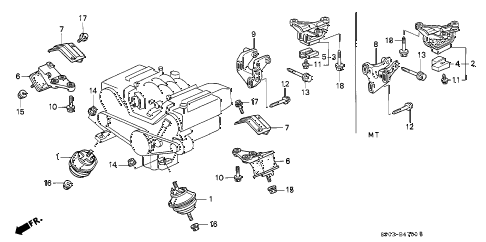

1992 LEGEND STD 4 DOOR 5MT ENGINE MOUNT (1) diagram
  • 001

    rubber, fr. engine mounting

    • Part Number: 50800-SP0-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    stopper, transmission mounting(mt)

    • Part Number: 50805-SP0-405

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $256.13

  • 004

    weight, transmission stopper (mt)

    • Part Number: 50807-SP0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    mounting, middle (hard)

    • Part Number: 50820-SP0-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 007

    insulator, middle heat

    • Part Number: 50823-SP0-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    bolt, flange (10x45)

    • Part Number: 90167-SP0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.50

  • 011

    bolt, flange (10x16)

    • Part Number: 90174-SP0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.40

  • 012

    bolt, flange (10x40)

    • Part Number: 90181-SP0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.70

  • 013

    bolt, flange (12x100)

    • Part Number: 90196-SP0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.65

  • 014

    nut, self-lock (12mm)

    • Part Number: 90364-SP0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    nut, self-lock (10mm)

    • Part Number: 90365-SP0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 016

    nut, self-lock (12mm)

    • Part Number: 90367-SP0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 017

    bolt, flange (6x8)

    • Part Number: 95701-06008-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.88

  • 018

    bolt, flange (10x40)

    • Part Number: 95701-10040-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.30
