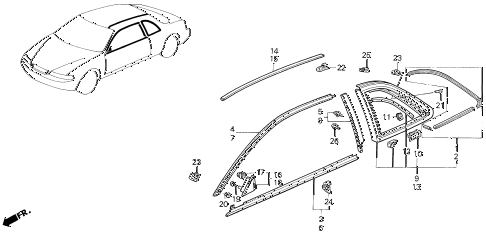

1993 LEGEND L 2 DOOR 4AT MOLDING diagram
Back to Top
lip set, r. (outer)lip set, l. (outer)molding assy., r. fr. doormolding, r. dripgarnish, r. center pillarmolding assy., l. fr. doormolding, l. dripgarnish, l. center pillargarnish assy., r. rr. pillarstabilizer, rr. pillar garnishgrommet, rr. pillar garnishgarnish assy., l. rr. pillarmolding assy., r. roofmolding assy., l. roofcover, r. fr. door mirrorclip, door mirror covercover, l. fr. door mirrorscrew, tapping (4x12)screw, tapping (4x10)screw, tapping (4x12) (sus)clip, roof moldinggrommet, screw (4mm)grommet, screw (4mm)clip, door moldinggrommet, screw (4mm) (circle)screw-washer (4x8)
