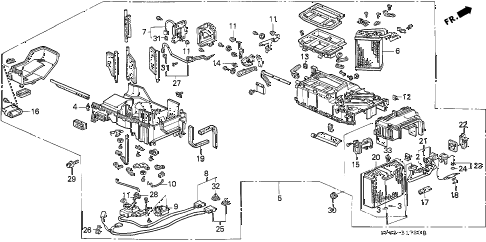

HEATER UNIT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: o-ring (8mm) Part Number: 80873-SN7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.32

Ref #: 002	Honda Part: o-ring (1/2") Part Number: 80872-SN7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.32

Ref #: 003	Honda Part: o-ring (5/8") Part Number: 80871-SN7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.32

Ref #: 006	Honda Part: core, heater Part Number: 79110-SP0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $537.12

Ref #: 007	Honda Part: motor assy., mode Part Number: 79150-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $162.15

Ref #: 008	Honda Part: motor assy., air mix Part Number: 79160-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: shaft a, air mode Part Number: 79182-SP0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.60

Ref #: 011	Honda Part: bush (6.7mm) Part Number: 79192-SD4-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.20

Ref #: 012	Honda Part: holder a, heater Part Number: 79192-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.77

Ref #: 013	Honda Part: holder b, heater Part Number: 79193-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.77

Ref #: 014	Honda Part: bush Part Number: 79194-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.37

Ref #: 015	Honda Part: transistor, power Part Number: 79330-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $196.10

Ref #: 016	Honda Part: outlet, heater Part Number: 79831-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $17.63

Ref #: 017	Honda Part: insulator, piping Part Number: 80205-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: holder Part Number: 80206-SX0-961 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.97

Ref #: 019	Honda Part: gasket d Part Number: 80209-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: evaporator sub-assy. Part Number: 80210-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 021	Honda Part: pipe, liquid Part Number: 80216-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $86.50

Ref #: 022	Honda Part: gasket b Part Number: 80218-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 023	Honda Part: valve, expansion Part Number: 80220-SP0-J11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 027	Honda Part: sensor, evaporator Part Number: 80560-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 029	Honda Part: bolt-washer (6x20) Part Number: 90137-SD4-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.33

Ref #: 030	Honda Part: nut-washer (6mm) Part Number: 90222-SB4-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.28

Ref #: 031	Honda Part: holder, bracket (red) Part Number: 91554-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.43

Ref #: 032	Honda Part: clip, connector (red) Part Number: 91555-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.90

Ref #: 033	Honda Part: bolt, socket (6x20) Part Number: 96600-06020-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.93

Ref #: 001	Honda Part: o-ring (8mm) Part Number: 80873-SN7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.32

Ref #: 002	Honda Part: o-ring (1/2") Part Number: 80872-SN7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.32

Ref #: 003	Honda Part: o-ring (5/8") Part Number: 80871-SN7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.32

Ref #: 006	Honda Part: core, heater Part Number: 79110-SP0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$537.12

Ref #: 007	Honda Part: motor assy., mode Part Number: 79150-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$162.15

Ref #: 008	Honda Part: motor assy., air mix Part Number: 79160-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: shaft a, air mode Part Number: 79182-SP0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.60

Ref #: 011	Honda Part: bush (6.7mm) Part Number: 79192-SD4-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.20

Ref #: 012	Honda Part: holder a, heater Part Number: 79192-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.77

Ref #: 013	Honda Part: holder b, heater Part Number: 79193-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.77

Ref #: 014	Honda Part: bush Part Number: 79194-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.37

Ref #: 015	Honda Part: transistor, power Part Number: 79330-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$196.10

Ref #: 016	Honda Part: outlet, heater Part Number: 79831-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$17.63

Ref #: 017	Honda Part: insulator, piping Part Number: 80205-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: holder Part Number: 80206-SX0-961 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.97

Ref #: 019	Honda Part: gasket d Part Number: 80209-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: evaporator sub-assy. Part Number: 80210-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 021	Honda Part: pipe, liquid Part Number: 80216-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$86.50

Ref #: 022	Honda Part: gasket b Part Number: 80218-SP0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 023	Honda Part: valve, expansion Part Number: 80220-SP0-J11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 027	Honda Part: sensor, evaporator Part Number: 80560-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 029	Honda Part: bolt-washer (6x20) Part Number: 90137-SD4-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.33

Ref #: 030	Honda Part: nut-washer (6mm) Part Number: 90222-SB4-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.28

Ref #: 031	Honda Part: holder, bracket (red) Part Number: 91554-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.43

Ref #: 032	Honda Part: clip, connector (red) Part Number: 91555-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.90

Ref #: 033	Honda Part: bolt, socket (6x20) Part Number: 96600-06020-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.93
