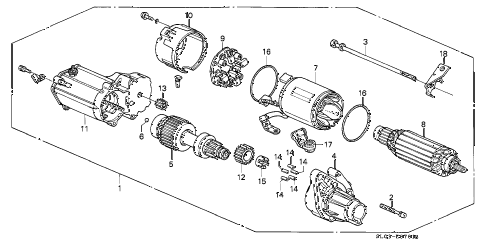

1993 NSX 2 DOOR 5MT STARTER MOTOR (1) diagram
  • 001

    starter motor assy. (dr5u3) (denso)

    • Part Number: 31200-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    screw (denso)

    • Part Number: 31201-657-671

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    bolt, through (denso)

    • Part Number: 31202-PC2-661

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    cover, gear

    • Part Number: 31203-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    clutch, overrunning

    • Part Number: 31204-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    ball, steel (denso)

    • Part Number: 31205-657-671

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    yoke

    • Part Number: 31206-PT0-901

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    armature (denso)

    • Part Number: 31207-PH7-662

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    plate, brush holder (denso)

    • Part Number: 31208-PH7-661

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    frame, starter end

    • Part Number: 31209-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    switch assy., magnet

    • Part Number: 31210-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    gear, drive pinion

    • Part Number: 31211-PC2-661

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    gear, idle

    • Part Number: 31222-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    roller, bearing (denso)

    • Part Number: 31225-PB2-006

    '


    KA - US - 49 State Spec

    • $3.35

  • 015

    retainer, bearing (denso)

    • Part Number: 31226-PB2-006

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    o-ring, yoke body

    • Part Number: 31228-PC2-661

    '


    KA - US - 49 State Spec

    • $3.03

  • 017

    cover, terminal

    • Part Number: 31235-PT4-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    stay

    • Part Number: 31291-PR7-A01

    '


    KA - US - 49 State Spec

    Contact your dealer
