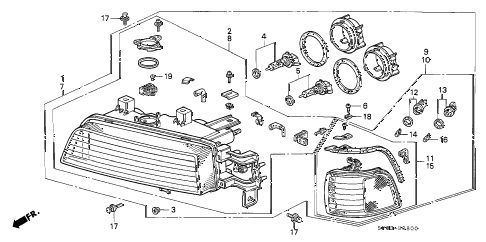

HEADLIGHT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: headlight assy., r. Part Number: 33100-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: headlight unit, r. Part Number: 33101-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: nut b, special Part Number: 33105-SM4-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.15

Ref #: 004	Honda Part: bulb, headlight (hb3) (12v 60w) (sylvania) Part Number: 33115-S84-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $11.60

Ref #: 005	Honda Part: bulb, headlight (hb4) (12v 51w) (philips) Part Number: 33116-TA0-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $11.60

Ref #: 006	Honda Part: screw, tapping (4x12) Part Number: 33122-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.40

Ref #: 007	Honda Part: headlight assy., l. Part Number: 33150-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: light assy., r. fr. position &side marker Part Number: 33600-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: light assy., l. fr. position &side marker Part Number: 33650-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: lens, r. Part Number: 34301-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $125.53

Ref #: 012	Honda Part: socket Part Number: 34304-SH3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $10.32

Ref #: 013	Honda Part: socket (2) Part Number: 34305-SH3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.47

Ref #: 014	Honda Part: bulb (12v 5w) (krypton) Part Number: 34306-SH3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.42

Ref #: 015	Honda Part: lens, l. Part Number: 34351-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $125.53

Ref #: 016	Honda Part: bulb (12v/5w) (stanley) Part Number: 34351-657-921 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.85

Ref #: 017	Honda Part: bolt-washer (6x16) Part Number: 90101-SNZ-M00 Standard Qty.: 010 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.13

Ref #: 018	Honda Part: nut, special (3) Part Number: 33104-SR3-G01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 019	Honda Part: screw, pan (4x10) Part Number: 93500-04010-0A Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.55

Ref #: 001	Honda Part: headlight assy., r. Part Number: 33100-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: headlight unit, r. Part Number: 33101-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: nut b, special Part Number: 33105-SM4-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.15

Ref #: 004	Honda Part: bulb, headlight (hb3) (12v 60w) (sylvania) Part Number: 33115-S84-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$11.60

Ref #: 005	Honda Part: bulb, headlight (hb4) (12v 51w) (philips) Part Number: 33116-TA0-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$11.60

Ref #: 006	Honda Part: screw, tapping (4x12) Part Number: 33122-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.40

Ref #: 007	Honda Part: headlight assy., l. Part Number: 33150-SP0-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: light assy., r. fr. position &side marker Part Number: 33600-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: light assy., l. fr. position &side marker Part Number: 33650-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: lens, r. Part Number: 34301-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$125.53

Ref #: 012	Honda Part: socket Part Number: 34304-SH3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$10.32

Ref #: 013	Honda Part: socket (2) Part Number: 34305-SH3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.47

Ref #: 014	Honda Part: bulb (12v 5w) (krypton) Part Number: 34306-SH3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.42

Ref #: 015	Honda Part: lens, l. Part Number: 34351-SP0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$125.53

Ref #: 016	Honda Part: bulb (12v/5w) (stanley) Part Number: 34351-657-921 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.85

Ref #: 017	Honda Part: bolt-washer (6x16) Part Number: 90101-SNZ-M00 Standard Qty.: 010 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.13

Ref #: 018	Honda Part: nut, special (3) Part Number: 33104-SR3-G01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 019	Honda Part: screw, pan (4x10) Part Number: 93500-04010-0A Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.55
