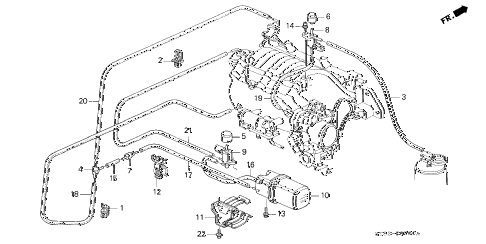

1995 INTEGRA GS-R 4 DOOR 5MT VACUUM TANK - TUBING (1) diagram
  • 001

    clamp, tube (7.5x2)

    • Part Number: 17205-PC6-000

    '


    KA - US - 49 State Spec

    • $5.43

  • 002

    clamp, tube (7.5x2)

    • Part Number: 17363-PM3-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 003

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec

    • $52.80

  • 004

    joint, three way

    • Part Number: 36010-PE0-004

    '


    KA - US - 49 State Spec

    • $7.57

  • 005

    filter assy., solenoid valve

    • Part Number: 36138-PM1-G01

    '


    KA - US - 49 State Spec

    • $15.52

  • 006

    filter assy., solenoid valve

    • Part Number: 36138-PR7-A01

    '


    KA - US - 49 State Spec

    • $15.52

  • 007

    valve, check

    • Part Number: 36145-PM4-004

    '


    KA - US - 49 State Spec

    • $29.68

  • 008

    valve assy., purge cut solenoid

    • Part Number: 36162-PT3-Q01

    '


    KA - US - 49 State Spec

    • $181.83

  • 009

    valve assy., bypass control solenoid

    • Part Number: 36163-PT2-004

    '


    KA - US - 49 State Spec

    • $181.15

  • 010

    tank, vacuum

    • Part Number: 36361-P72-000

    '


    KA - US - 49 State Spec

    • $40.38

  • 011

    bracket, vacuum tank

    • Part Number: 36362-P72-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    clamp, tube (7.5x3-22)

    • Part Number: 36364-P72-003

    '


    KA - US - 49 State Spec

    • $4.07

  • 013

    screw-washer (5x14)

    • Part Number: 93892-05014-08

    '


    KA - US - 49 State Spec

    • $0.65

  • 014

    screw-washer (5x16)

    • Part Number: 93893-05016-08

    '


    KA - US - 49 State Spec

    • $0.75

  • 015

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec

    • $52.80

  • 022

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
