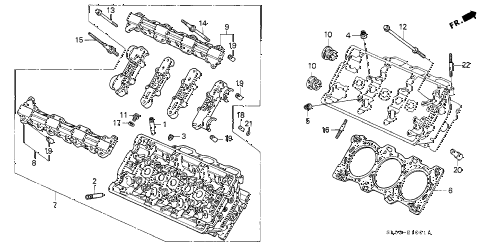

CYLINDER HEAD (RR.) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: guide, valve (over size) Part Number: 12204-PR7-305 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.05

Ref #: 002	Honda Part: guide, ex. valve (over size) Part Number: 12205-PR7-305 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.05

Ref #: 003	Honda Part: screw, sealing Part Number: 12208-PG6-300 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.17

Ref #: 004	Honda Part: seal a, valve stem (nok) Part Number: 12210-PZ1-004 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.69

Ref #: 005	Honda Part: seal b, valve stem (nok) Part Number: 12211-PZ1-004 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.69

Ref #: 006	Honda Part: gasket, cylinder head (ishino gasket) Part Number: 12251-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $96.72

Ref #: 007	Honda Part: cylinder head assy., rr. Part Number: 12300-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 008	Honda Part: pipe, rr. ex. cam holder Part Number: 12435-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $317.03

Ref #: 009	Honda Part: pipe, cam holder Part Number: 12436-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $317.03

Ref #: 010	Honda Part: rubber, head cover seal Part Number: 12513-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.35

Ref #: 011	Honda Part: bolt, sealing (10mm) Part Number: 90004-PE2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.60

Ref #: 012	Honda Part: bolt-washer (11x164) Part Number: 90005-PH7-003 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.88

Ref #: 013	Honda Part: bolt, flange (8x52) Part Number: 90007-PR7-A00 Standard Qty.: 020 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.58

Ref #: 014	Honda Part: bolt a, head cover Part Number: 90014-PR7-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.22

Ref #: 015	Honda Part: bolt b, head cover Part Number: 90015-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.60

Ref #: 016	Honda Part: bolt, stud (8x41) Part Number: 90021-P0G-A00 Standard Qty.: 007 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.20

Ref #: 017	Honda Part: washer, sealing (10mm) Part Number: 90401-PE2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.48

Ref #: 018	Honda Part: pin, dowel (8x10) Part Number: 94301-08100 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.13

Ref #: 019	Honda Part: pin, dowel (10x12) Part Number: 94301-10120 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.37

Ref #: 020	Honda Part: pin, dowel (13x37) Part Number: 90719-PH7-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.80

Ref #: 021	Honda Part: o-ring (8.8x1.9) Part Number: 91302-GE0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.28

Ref #: 021	Honda Part: o-ring (8.8x1.9) Part Number: 91308-PH9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.28

Ref #: 022	Honda Part: bolt, stud (8x40) Part Number: 92900-08040-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.15

Ref #: 001	Honda Part: guide, valve (over size) Part Number: 12204-PR7-305 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.05

Ref #: 002	Honda Part: guide, ex. valve (over size) Part Number: 12205-PR7-305 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.05

Ref #: 003	Honda Part: screw, sealing Part Number: 12208-PG6-300 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.17

Ref #: 004	Honda Part: seal a, valve stem (nok) Part Number: 12210-PZ1-004 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.69

Ref #: 005	Honda Part: seal b, valve stem (nok) Part Number: 12211-PZ1-004 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.69

Ref #: 006	Honda Part: gasket, cylinder head (ishino gasket) Part Number: 12251-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$96.72

Ref #: 007	Honda Part: cylinder head assy., rr. Part Number: 12300-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 008	Honda Part: pipe, rr. ex. cam holder Part Number: 12435-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$317.03

Ref #: 009	Honda Part: pipe, cam holder Part Number: 12436-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$317.03

Ref #: 010	Honda Part: rubber, head cover seal Part Number: 12513-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.35

Ref #: 011	Honda Part: bolt, sealing (10mm) Part Number: 90004-PE2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.60

Ref #: 012	Honda Part: bolt-washer (11x164) Part Number: 90005-PH7-003 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.88

Ref #: 013	Honda Part: bolt, flange (8x52) Part Number: 90007-PR7-A00 Standard Qty.: 020 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.58

Ref #: 014	Honda Part: bolt a, head cover Part Number: 90014-PR7-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.22

Ref #: 015	Honda Part: bolt b, head cover Part Number: 90015-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.60

Ref #: 016	Honda Part: bolt, stud (8x41) Part Number: 90021-P0G-A00 Standard Qty.: 007 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.20

Ref #: 017	Honda Part: washer, sealing (10mm) Part Number: 90401-PE2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.48

Ref #: 018	Honda Part: pin, dowel (8x10) Part Number: 94301-08100 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.13

Ref #: 019	Honda Part: pin, dowel (10x12) Part Number: 94301-10120 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.37

Ref #: 020	Honda Part: pin, dowel (13x37) Part Number: 90719-PH7-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.80

Ref #: 021	Honda Part: o-ring (8.8x1.9) Part Number: 91302-GE0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.28

Ref #: 021	Honda Part: o-ring (8.8x1.9) Part Number: 91308-PH9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.28

Ref #: 022	Honda Part: bolt, stud (8x40) Part Number: 92900-08040-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.15
