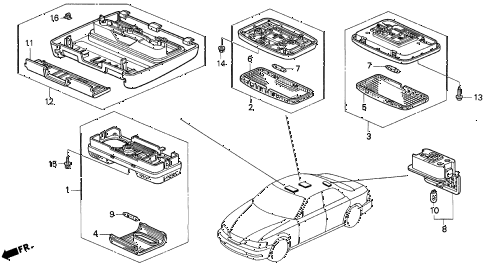

INTERIOR LIGHT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: light assy., interior & speaker nh220l Part Number: 34250-SL5-A02ZF Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 001	Honda Part: light assy., interior & speaker yr98l Part Number: 34250-SL5-A02ZH Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: light assy., interior yr98l Part Number: 34250-SM4-003ZL Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: light assy., interior nh220l Part Number: 34250-SS0-003ZB Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: lens Part Number: 34251-SL5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: lens Part Number: 34251-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.50

Ref #: 007	Honda Part: bulb (t10x31) (8w) Part Number: 04110-SWA-305 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.48

Ref #: 008	Honda Part: light assy., trunk room Part Number: 34260-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $26.07

Ref #: 009	Honda Part: bulb (12v 5w.k) Part Number: 34295-SD4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.00

Ref #: 010	Honda Part: bulb (12v/5w) (stanley) Part Number: 34351-657-921 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.80

Ref #: 011	Honda Part: cap, card holder nh220l Part Number: 83206-SW5-000ZA Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $13.45

Ref #: 011	Honda Part: cap, card holder yr98l Part Number: 83206-SW5-000ZB Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $13.45

Ref #: 012	Honda Part: garnish, fr. lamp nh220l Part Number: 83208-SW5-920ZA Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 012	Honda Part: garnish, fr. lamp yr98l Part Number: 83208-SW5-920ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 013	Honda Part: screw-washer (4x12) Part Number: 90107-SE3-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.63

Ref #: 015	Honda Part: bolt, ground (6x30) (zn) Part Number: 90154-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.88

Ref #: 016	Honda Part: clip, garnish (kato) Part Number: 90610-SR3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.75

Ref #: 001	Honda Part: light assy., interior & speaker nh220l Part Number: 34250-SL5-A02ZF Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 001	Honda Part: light assy., interior & speaker yr98l Part Number: 34250-SL5-A02ZH Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: light assy., interior yr98l Part Number: 34250-SM4-003ZL Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: light assy., interior nh220l Part Number: 34250-SS0-003ZB Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: lens Part Number: 34251-SL5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: lens Part Number: 34251-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.50

Ref #: 007	Honda Part: bulb (t10x31) (8w) Part Number: 04110-SWA-305 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.48

Ref #: 008	Honda Part: light assy., trunk room Part Number: 34260-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$26.07

Ref #: 009	Honda Part: bulb (12v 5w.k) Part Number: 34295-SD4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.00

Ref #: 010	Honda Part: bulb (12v/5w) (stanley) Part Number: 34351-657-921 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.80

Ref #: 011	Honda Part: cap, card holder nh220l Part Number: 83206-SW5-000ZA Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$13.45

Ref #: 011	Honda Part: cap, card holder yr98l Part Number: 83206-SW5-000ZB Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$13.45

Ref #: 012	Honda Part: garnish, fr. lamp nh220l Part Number: 83208-SW5-920ZA Standard Qty.: 001 Color: (CLEAR GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 012	Honda Part: garnish, fr. lamp yr98l Part Number: 83208-SW5-920ZC Standard Qty.: 001 Color: (COAST SAND) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 013	Honda Part: screw-washer (4x12) Part Number: 90107-SE3-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.63

Ref #: 015	Honda Part: bolt, ground (6x30) (zn) Part Number: 90154-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.88

Ref #: 016	Honda Part: clip, garnish (kato) Part Number: 90610-SR3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.75
