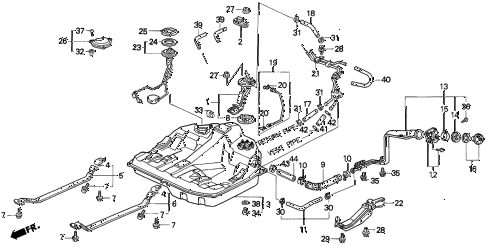

View large diagramHide diagramView diagramView printable catalog
  • 001

    pump set, fuel

    • Part Number: 17040-SW5-A32

    '


    KA - US - 49 State Spec

    • $511.80

  • 002

    valve (two-way) (tec)

    • Part Number: 17371-SM4-A02

    '


    KA - US - 49 State Spec

    • $59.80

  • 003

    tank, fuel

    • Part Number: 17500-SW5-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    bracket, fuel tank band

    • Part Number: 17511-SM4-000

    '


    KA - US - 49 State Spec

    • $11.30

  • 005

    band assy., r. fuel tank mounting

    • Part Number: 17521-SL4-030

    '


    KA - US - 49 State Spec

    • $49.18

  • 006

    band assy., l. fuel tank mounting

    • Part Number: 17522-SL4-030

    '


    KA - US - 49 State Spec

    • $49.18

  • 007

    bolt-washer (10x35)

    • Part Number: 17525-SM4-000

    '


    KA - US - 49 State Spec

    • $3.08

  • 008

    gasket, base

    • Part Number: 17574-SE0-000

    '


    KA - US - 49 State Spec

    • $7.77

  • 009

    tube, filler neck

    • Part Number: 17651-SL5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    clip, filler tube

    • Part Number: 17652-SA5-000

    '


    KA - US - 49 State Spec

    • $6.60

  • 011

    tube assy., breather (260mm)

    • Part Number: 17658-SM4-000

    '


    KA - US - 49 State Spec

    • $20.72

  • 012

    holder, filler gasket

    • Part Number: 17659-SW5-003

    '


    KA - US - 49 State Spec

    • $13.75

  • 013

    pipe, fuel filler

    • Part Number: 17660-SW5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    gasket, fuel filler pipe

    • Part Number: 17662-SL5-000

    '


    KA - US - 49 State Spec

    • $7.27

  • 015

    band, filler gasket

    • Part Number: 17663-SL5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    cap, fuel filler (stant)

    • Part Number: 17670-SM1-A03

    '


    KA - US - 49 State Spec

    • $14.42

  • 016

    cap, fuel filler (toyoda)

    • Part Number: 17670-SM4-A04

    '


    KA - US - 49 State Spec

    • $27.50

  • 016

    cap, fuel filler

    • Part Number: 17670-SV1-A01

    '


    KA - US - 49 State Spec

    • $27.50

  • 017

    hose, fuel pipe return

    • Part Number: 17702-SW3-930

    '


    KA - US - 49 State Spec

    • $16.42

  • 018

    hose, fuel tank return (100mm)

    • Part Number: 17704-SL4-930

    '


    KA - US - 49 State Spec

    • $14.22

  • 019

    tube, fuel joint

    • Part Number: 17707-SW5-A31

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    retainer (yellow) (tokai)

    • Part Number: 17711-ST0-003

    '


    KA - US - 49 State Spec

    • $7.55

  • 021

    pipe, fuel

    • Part Number: 17731-SL5-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    protector, fuel hose joint

    • Part Number: 17733-SL4-931

    '


    KA - US - 49 State Spec

    • $14.10

  • 024

    gasket, base

    • Part Number: 37801-SE3-000

    '


    KA - US - 49 State Spec

    • $4.10

  • 025

    retainer, fuel unit

    • Part Number: 37802-SE0-000

    '


    KA - US - 49 State Spec

    • $4.53

  • 026

    cap assy., floor maintenance hole

    • Part Number: 74660-SW5-000

    '


    KA - US - 49 State Spec

    • $16.65

  • 027

    nut, flange (6mm)

    • Part Number: 90301-SE0-J00

    '


    KA - US - 49 State Spec

    • $2.58

  • 028

    clip, valve cover (two-way)

    • Part Number: 90657-SH3-013

    '


    KA - US - 49 State Spec

    • $0.45

  • 029

    bolt, fr. fender

    • Part Number: 90671-SB2-003

    '


    KA - US - 49 State Spec

    • $5.02

  • 030

    clip, air bleed tube

    • Part Number: 90700-SB0-003

    '


    KA - US - 49 State Spec

    • $5.67

  • 031

    clamp, fuel hose (d10.5)

    • Part Number: 91406-SL4-931

    '


    KA - US - 49 State Spec

    • $3.25

  • 032

    grommet, screw (5mm) (black)

    • Part Number: 91601-SH3-013

    '


    KA - US - 49 State Spec

    • $2.88

  • 033

    clip, wire harness

    • Part Number: 91691-SE0-003

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 034

    bolt, drain plug (12mm)

    • Part Number: 92800-12000

    '


    KA - US - 49 State Spec

    • $2.13

  • 035

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 036

    screw, tapping (4x8)

    • Part Number: 93901-24120

    '


    KA - US - 49 State Spec

    • $1.38

  • 037

    screw, tapping (5x12)

    • Part Number: 93901-25280

    '


    KA - US - 49 State Spec

    • $0.55

  • 038

    washer, drain plug (12mm)

    • Part Number: 94109-12000

    '


    KA - US - 49 State Spec

    • $0.60

  • 039

    bulk hose, fuel (5.5x8000)

    • Part Number: 95001-55008-60M

    '


    KA - US - 49 State Spec

    • $54.30

  • 042

    clip, tube (b10)

    • Part Number: 95002-02104

    '


    KA - US - 49 State Spec

    • $1.08

  • 043

    clamp, tube (d10)

    • Part Number: 95002-41000-08

    '


    KA - US - 49 State Spec

    • $1.43

  • 044

    bulk hose, vinyl (7x11x3000)

    • Part Number: 95003-19003-60M

    '


    KA - US - 49 State Spec

    • $11.00
