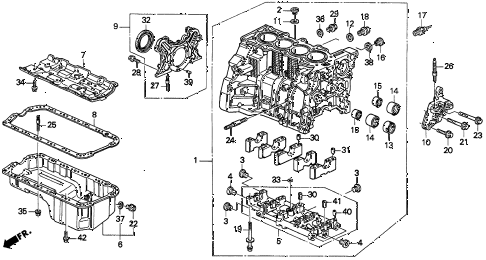

1997 CL BAS2.2 2 DOOR 5MT CYLINDER BLOCK - OIL PAN (1) diagram
  • 001

    block assy., cylinder

    • Part Number: 11000-P0A-406

    '


    KA - US - 49 State Spec

    • $2,736.22

  • 002

    bolt, sealing (16mm)

    • Part Number: 11106-PT0-300

    '


    KA - US - 49 State Spec

    • $6.52

  • 003

    bolt, sealing (16mm)

    • Part Number: 11107-PAA-A00

    '


    KA - US - 49 State Spec

    • $2.45

  • 004

    bolt, sealing (22mm)

    • Part Number: 11126-PK1-003

    '


    KA - US - 49 State Spec

    • $3.83

  • 005

    bridge, bearing cap

    • Part Number: 11130-PT0-030

    '


    KA - US - 49 State Spec

    • $110.15

  • 006

    pan, oil

    • Part Number: 11200-PT0-010

    '


    KA - US - 49 State Spec

    • $92.65

  • 007

    plate, baffle

    • Part Number: 11221-PT2-000

    '


    KA - US - 49 State Spec

    • $47.37

  • 008

    gasket, oil pan

    • Part Number: 11251-P0A-000

    '


    KA - US - 49 State Spec

    • $33.90

  • 009

    cover assy., r. side

    • Part Number: 11300-PT0-000

    '


    KA - US - 49 State Spec

    • $93.07

  • 010

    bracket, engine mounting

    • Part Number: 11910-P0A-000

    '


    KA - US - 49 State Spec

    • $44.77

  • 011

    washer, sealing (16mm)

    • Part Number: 12207-PC6-300

    '


    KA - US - 49 State Spec

    • $3.30

  • 012

    washer, sealing bolt

    • Part Number: 12207-634-300

    '


    KA - US - 49 State Spec

    • $3.45

  • 013

    metal, balancer shaft (no.1) (daido)

    • Part Number: 13421-PT0-003

    '


    KA - US - 49 State Spec

    • $24.12

  • 014

    metal, balancer shaft (no.2) (daido)

    • Part Number: 13422-PT0-013

    '


    KA - US - 49 State Spec

    • $24.12

  • 015

    metal, balancer shaft (no.3) (daido)

    • Part Number: 13423-PT0-003

    '


    KA - US - 49 State Spec

    • $24.12

  • 016

    bolt, sealing (20mm)

    • Part Number: 15233-PK1-000

    '


    KA - US - 49 State Spec

    • $5.45

  • 017

    switch, oil pressure (tec)

    • Part Number: 37240-PT0-014

    '


    KA - US - 49 State Spec

    • $23.27

  • 018

    bolt, drain plug (28mm)

    • Part Number: 90001-PM3-003

    '


    KA - US - 49 State Spec

    • $12.53

  • 019

    bolt-washer (11x121)

    • Part Number: 90007-PAA-T01

    '


    KA - US - 49 State Spec

    • $6.63

  • 020

    bolt, mounting bracket (10x32.5)

    • Part Number: 90008-PM3-000

    '


    KA - US - 49 State Spec

    • $4.57

  • 021

    bolt, mounting bracket (10x53)

    • Part Number: 90008-P0A-000

    '


    KA - US - 49 State Spec

    • $0.78

  • 022

    bolt, drain plug (14mm)

    • Part Number: 90009-PH1-000

    '


    KA - US - 49 State Spec

    • $1.73

  • 023

    bolt b, mounting bracket (10x56.2)

    • Part Number: 90009-P0A-000

    '


    KA - US - 49 State Spec

    • $0.87

  • 024

    bolt, stud (10x35)

    • Part Number: 90030-PT0-000

    '


    KA - US - 49 State Spec

    • $5.95

  • 025

    bolt, stud (6x28)

    • Part Number: 90041-PA5-000

    '


    KA - US - 49 State Spec

    • $2.57

  • 026

    bolt, stud (12x60)

    • Part Number: 90041-PT0-000

    '


    KA - US - 49 State Spec

    • $4.22

  • 027

    bolt, stud (6x28)

    • Part Number: 90042-PR3-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 028

    bolt, flange (6x18)

    • Part Number: 90051-PH7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 029

    bolt, drain plug (12mm)

    • Part Number: 90061-PT0-000

    '


    KA - US - 49 State Spec

    • $4.57

  • 030

    pin, dowel (16x22)

    • Part Number: 90705-PT0-000

    '


    KA - US - 49 State Spec

    • $2.25

  • 031

    pin, dowel (13x20)

    • Part Number: 90715-PC6-000

    '


    KA - US - 49 State Spec

    • $3.47

  • 032

    oil seal (80x100x10) (nok)

    • Part Number: 91214-PLE-003

    '


    KA - US - 49 State Spec

    • $19.00

  • 033

    gasket, bearing cap bridge (arai)

    • Part Number: 91323-PH7-003

    '


    KA - US - 49 State Spec

    • $2.18

  • 034

    bolt-washer (6x16)

    • Part Number: 93404-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 035

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23

  • 036

    washer, drain plug (12mm)

    • Part Number: 94109-12000

    '


    KA - US - 49 State Spec

    • $0.60

  • 037

    washer, drain plug (14mm)

    • Part Number: 94109-14000

    '


    KA - US - 49 State Spec

    • $0.38

  • 038

    washer, drain plug (20mm)

    • Part Number: 94109-20000

    '


    KA - US - 49 State Spec

    • $0.73

  • 039

    pin, dowel (6x10)

    • Part Number: 94301-06100

    '


    KA - US - 49 State Spec

    • $1.20

  • 040

    pin, dowel (10x16)

    • Part Number: 94301-10160

    '


    KA - US - 49 State Spec

    • $1.33

  • 041

    pin, dowel (12x20)

    • Part Number: 94301-12200

    '


    KA - US - 49 State Spec

    • $1.33

  • 042

    bolt, flange (6x18)

    • Part Number: 95701-06018-08

    '


    KA - US - 49 State Spec

    • $0.88
