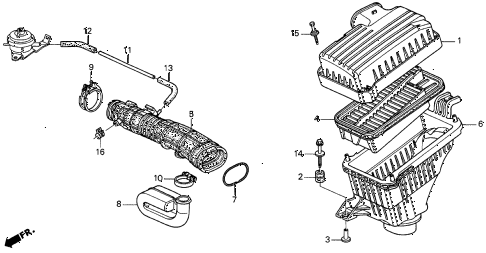

1997 CL BAS3.0 2 DOOR 4AT AIR CLEANER (2) diagram
  • 001

    cover, air cleaner

    • Part Number: 17211-P0G-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $110.50

  • 002

    rubber, air cleaner mounting

    • Part Number: 17212-PN3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.40

  • 003

    collar, air cleaner mounting

    • Part Number: 17216-PN3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.70

  • 004

    element assy., air cleaner

    • Part Number: 17220-P0G-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $28.14

  • 005

    tube, air flow

    • Part Number: 17228-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $43.88

  • 006

    housing, air cleaner

    • Part Number: 17241-P0G-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $61.14

  • 007

    spring, air flow tube

    • Part Number: 17249-PY3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.95

  • 008

    tube, side branch

    • Part Number: 17251-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    clamp, air flow tube (70)

    • Part Number: 17316-PH3-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.93

  • 010

    clamp, air flow tube (60)

    • Part Number: 17316-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.58

  • 011

    pipe

    • Part Number: 17410-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.02

  • 012

    tube a

    • Part Number: 36286-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.32

  • 013

    tube b

    • Part Number: 36287-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.55

  • 014

    bolt-washer, special (6x35)

    • Part Number: 90029-PHM-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.48

  • 015

    bolt-washer (5x28)

    • Part Number: 90091-P36-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.63

  • 016

    clamp, tube (d17)

    • Part Number: 91405-PM5-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.37
