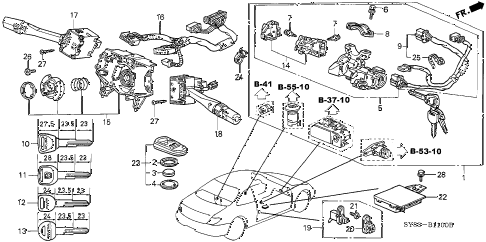

1997 CL BAS3.0 2 DOOR 4AT COMBINATION SWITCH (1) diagram
  • 001

    cylinder set, key *nh264l* (service)

    • Part Number: 06350-SY8-A10ZA

    (CLASSY GRAY)

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 001

    cylinder set, key *nh283l* (service)

    • Part Number: 06350-SY8-A10ZB

    (QUARTZ GRAY)

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 001

    cylinder set, key *nh264l* (service)

    • Part Number: 06350-SY8-A10ZA

    (CLASSY GRAY)

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 001

    cylinder set, key *nh283l* (service)

    • Part Number: 06350-SY8-A10ZB

    (QUARTZ GRAY)

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    gasket

    • Part Number: 32147-SY1-X00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.05

  • 003

    battery

    • Part Number: 32148-SY8-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.03

  • 004

    case, battery

    • Part Number: 32149-SY8-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.53

  • 005

    lock assy., steering

    • Part Number: 35100-SV4-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $222.42

  • 006

    bolt, break head

    • Part Number: 35102-SV4-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.98

  • 007

    screw, recessed (3x8)

    • Part Number: 35103-SE3-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.70

  • 008

    holder, column (srs)

    • Part Number: 35108-SV4-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $11.13

  • 009

    wire harness, ignition

    • Part Number: 35110-SV4-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $49.90

  • 010

    key, blank plastic master (46.2mm)

    • Part Number: 35117-SL5-U01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.85

  • 012

    key, blank (sub)(mold=gray)

    • Part Number: 35114-SL0-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $18.23

  • 014

    switch, steering

    • Part Number: 35130-S30-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $53.25

  • 015

    body, switch

    • Part Number: 35251-SW5-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $52.25

  • 015

    body, switch

    • Part Number: 35251-SW5-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $52.25

  • 015

    body, switch

    • Part Number: 35251-SW5-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $52.25

  • 015

    body, switch

    • Part Number: 35251-SW5-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $52.25

  • 016

    wire assy., combination switch

    • Part Number: 35254-SV7-A03

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $132.68

  • 017

    switch assy., lighting

    • Part Number: 35255-SX0-G01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $65.10

  • 018

    switch assy., wiper

    • Part Number: 35256-SV7-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $108.45

  • 019

    switch assy., door

    • Part Number: 35400-SL4-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $13.97

  • 020

    cover, door switch

    • Part Number: 35401-SL4-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.30

  • 021

    screw, flange (4x12)

    • Part Number: 35409-692-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.70

  • 022

    control unit, door lock & keyless

    • Part Number: 38380-SS8-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $369.72

  • 023

    transmitter assy., keyless

    • Part Number: 72147-SY8-A03

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $64.15

  • 024

    strap, wire harness (25mm) (black)

    • Part Number: 90690-SA0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.62

  • 025

    band, wire harness (110mm) (brown)

    • Part Number: 91551-SF4-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.52

  • 026

    screw-washer (5x12)

    • Part Number: 93891-05012-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.68

  • 027

    screw, tapping (3x16)

    • Part Number: 93901-32420

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 028

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.00
