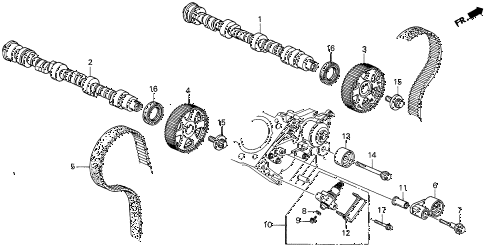

1997 CL BAS3.0 2 DOOR 4AT CAMSHAFT - TIMING BELT (2) diagram
  • 001

    camshaft, fr.

    • Part Number: 14100-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $247.78

  • 002

    camshaft, rr.

    • Part Number: 14200-P8A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $247.78

  • 003

    pulley, fr. timing belt driven

    • Part Number: 14260-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $51.62

  • 004

    pulley, rr. timing belt driven

    • Part Number: 14270-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $51.65

  • 005

    belt, timing (197yu26 gb-323)

    • Part Number: 14400-P8A-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $44.35

  • 006

    adjuster, timing belt

    • Part Number: 14510-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $117.25

  • 007

    bolt, timing belt adjuster

    • Part Number: 14513-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.68

  • 008

    gasket

    • Part Number: 14517-P13-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.45

  • 009

    bolt (7x0.75)

    • Part Number: 14518-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.45

  • 010

    adjuster, automatic

    • Part Number: 14520-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $117.25

  • 011

    collar, auto adjuster

    • Part Number: 14530-P13-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $28.52

  • 012

    stopper

    • Part Number: 14540-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $10.90

  • 013

    idler, timing belt (koyo seiko)

    • Part Number: 14550-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $62.47

  • 014

    bolt, idler

    • Part Number: 14551-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.60

  • 015

    bolt-washer (12x35)

    • Part Number: 90031-P8A-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $9.18

  • 016

    oil seal (39x53x8) (nok)

    • Part Number: 91213-RKG-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.17

  • 017

    bolt, flange (6x30)

    • Part Number: 95801-06030-07

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.03
