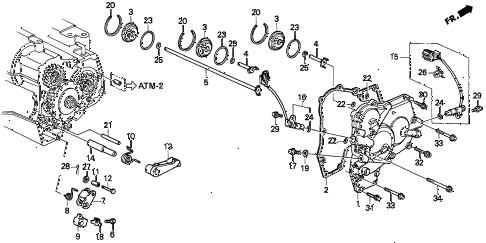

  • 001

    cover, r. side

    • Part Number: 21240-PX4-050

    '


    KA - US - 49 State Spec

    • $228.63

  • 002

    gasket, r. side cover

    • Part Number: 21812-P0X-000

    '


    KA - US - 49 State Spec

    • $18.68

  • 003

    guide a, feed pipe

    • Part Number: 22713-PX4-000

    '


    KA - US - 49 State Spec

    • $4.87

  • 004

    pipe b, feed

    • Part Number: 22715-P0Z-000

    '


    KA - US - 49 State Spec

    • $8.55

  • 005

    pipe c, feed

    • Part Number: 22720-PX4-000

    '


    KA - US - 49 State Spec

    • $14.72

  • 006

    bolt, shaft fork setting

    • Part Number: 24282-634-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 007

    lever, parking brake

    • Part Number: 24532-PX4-000

    '


    KA - US - 49 State Spec

    • $17.32

  • 008

    spring, parking brake

    • Part Number: 24535-P0X-000

    '


    KA - US - 49 State Spec

    • $4.33

  • 009

    stopper, parking brake (1)

    • Part Number: 24537-PA9-003

    '


    KA - US - 49 State Spec

    • $14.18

  • 009

    stopper, parking brake (2)

    • Part Number: 24538-PA9-003

    '


    KA - US - 49 State Spec

    • $14.18

  • 009

    stopper, parking brake (3)

    • Part Number: 24539-PA9-003

    '


    KA - US - 49 State Spec

    • $14.18

  • 010

    spring, parking pawl

    • Part Number: 24552-PX4-000

    '


    KA - US - 49 State Spec

    • $5.03

  • 011

    roller, parking brake

    • Part Number: 24553-PN6-000

    '


    KA - US - 49 State Spec

    • $6.28

  • 012

    pin, roller (6mm)

    • Part Number: 24555-PN6-000

    '


    KA - US - 49 State Spec

    • $6.00

  • 013

    pawl, parking brake

    • Part Number: 24561-P0X-000

    '


    KA - US - 49 State Spec

    • $43.88

  • 014

    shaft, parking

    • Part Number: 24562-PX4-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    pick-up assy., main (tec)

    • Part Number: 28810-P0X-004

    '


    KA - US - 49 State Spec

    • $124.48

  • 016

    pick-up assy., counter (tec)

    • Part Number: 28820-PX4-024

    '


    KA - US - 49 State Spec

    • $119.73

  • 017

    bolt, sealing (8mm)

    • Part Number: 90024-612-000

    '


    KA - US - 49 State Spec

    • $3.13

  • 018

    washer, lock (6mm)

    • Part Number: 90433-639-000

    '


    KA - US - 49 State Spec

    • $2.62

  • 019

    gasket (8mm)

    • Part Number: 90471-580-000

    '


    KA - US - 49 State Spec

    • $1.67

  • 020

    circlip b, inner (47mm)

    • Part Number: 90602-PX4-000

    '


    KA - US - 49 State Spec

    • $2.52

  • 021

    pin, dowel (8x55)

    • Part Number: 90701-639-000

    '


    KA - US - 49 State Spec

    • $4.58

  • 022

    o-ring (7.7x2.3) (arai)

    • Part Number: 91301-PC9-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 023

    o-ring (40x1.9) (nok)

    • Part Number: 91305-PX4-003

    '


    KA - US - 49 State Spec

    • $4.15

  • 024

    o-ring (16x2.1) (nok)

    • Part Number: 91309-PX4-003

    '


    KA - US - 49 State Spec

    • $2.02

  • 025

    o-ring (7.7x1.9) (nok)

    • Part Number: 91311-PA9-004

    '


    KA - US - 49 State Spec

    • $1.97

  • 026

    clip, hood wire

    • Part Number: 91558-SE3-003

    '


    KA - US - 49 State Spec

    • $5.37

  • 027

    washer, plain (6mm)

    • Part Number: 94101-06800

    '


    KA - US - 49 State Spec

    • $0.35

  • 028

    pin, split (1.6x12)

    • Part Number: 94201-16120

    '


    KA - US - 49 State Spec

    • $0.47

  • 029

    bolt, flange (6x18)

    • Part Number: 95701-06018-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 030

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22

  • 031

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 032

    bolt, flange (6x35)

    • Part Number: 95701-06035-08

    '


    KA - US - 49 State Spec

    • $1.03

  • 033

    bolt, flange (6x40)

    • Part Number: 95701-06040-08

    '


    KA - US - 49 State Spec

    • $1.03

  • 034

    bolt, flange (6x50)

    • Part Number: 95701-06050-08

    '


    KA - US - 49 State Spec

    • $1.20
