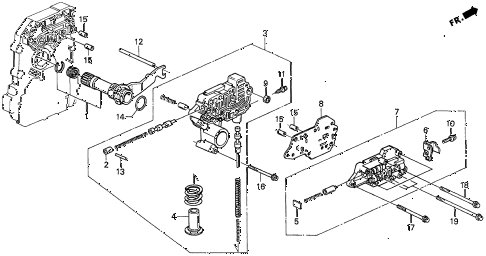

1997 CL PRE2.2 2 DOOR 4AT AT REGULATOR (1) diagram
  • 001

    shaft assy., stator

    • Part Number: 25155-PX4-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    cap, shift valve (1-2)

    • Part Number: 27122-PX4-000

    '


    KA - US - 49 State Spec

    • $5.60

  • 003

    regulator assy.

    • Part Number: 27200-P0X-900

    '


    KA - US - 49 State Spec

    • $274.98

  • 004

    cap, regulator spring

    • Part Number: 27246-PN6-800

    '


    KA - US - 49 State Spec

    • $31.17

  • 005

    seat, relief valve

    • Part Number: 27263-PX4-000

    '


    KA - US - 49 State Spec

    • $3.27

  • 006

    stopper, throttle cam

    • Part Number: 27493-PX4-000

    '


    KA - US - 49 State Spec

    • $7.62

  • 007

    body assy., throttle

    • Part Number: 27600-P0X-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    plate, throttle separating

    • Part Number: 27612-P0X-010

    '


    KA - US - 49 State Spec

    • $10.25

  • 009

    filter, secondary body

    • Part Number: 27750-PL5-J01

    '


    KA - US - 49 State Spec

    • $7.63

  • 010

    bolt, flange (6x14)

    • Part Number: 96001-06014-00

    '


    KA - US - 49 State Spec

    • $0.98

  • 011

    bolt, stopper (6mm)

    • Part Number: 90089-PK4-000

    '


    KA - US - 49 State Spec

    • $3.08

  • 012

    pin, dowel (8x80)

    • Part Number: 90701-PK4-000

    '


    KA - US - 49 State Spec

    • $3.88

  • 013

    roller (3.5x21.8)

    • Part Number: 91101-PF4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 014

    o-ring (31x1.7) (arai)

    • Part Number: 91316-PF4-003

    '


    KA - US - 49 State Spec

    • $2.52

  • 015

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 016

    bolt, flange (6x45)

    • Part Number: 95701-06045-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 017

    bolt, flange (6x75)

    • Part Number: 95701-06075-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 018

    bolt, flange (6x85)

    • Part Number: 95701-06085-08

    '


    KA - US - 49 State Spec

    • $1.57

  • 019

    bolt, flange (6x95)

    • Part Number: 95701-06095-08

    '


    KA - US - 49 State Spec

    • $1.62
