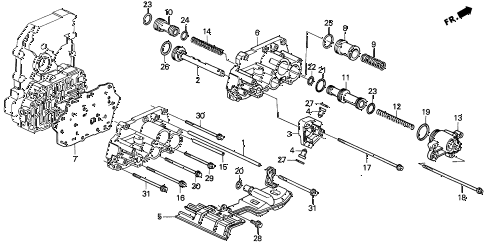

View large diagramHide diagramView diagramView printable catalog
  • 001

    pipe, top clutch

    • Part Number: 22744-PX4-000

    '


    KA - US - 49 State Spec

    • $7.35

  • 002

    shaft, shift fork

    • Part Number: 24271-PX4-000

    '


    KA - US - 49 State Spec

    • $52.38

  • 003

    base, servo detent

    • Part Number: 24278-PX4-000

    '


    KA - US - 49 State Spec

    • $22.82

  • 004

    sleeve, servo detent

    • Part Number: 24530-PN1-000

    '


    KA - US - 49 State Spec

    • $8.07

  • 005

    strainer, transmission (atf)

    • Part Number: 25420-PX4-701

    '


    KA - US - 49 State Spec

    • $61.32

  • 006

    body, servo

    • Part Number: 27410-P0X-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    plate, servo separating

    • Part Number: 27412-P0X-000

    '


    KA - US - 49 State Spec

    • $16.63

  • 008

    piston, low hold accumulator

    • Part Number: 27551-PX4-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    spring, low hold accumulator

    • Part Number: 27552-PX4-000

    '


    KA - US - 49 State Spec

    • $8.00

  • 010

    piston, third accumulator

    • Part Number: 27574-PX4-800

    '


    KA - US - 49 State Spec

    • $18.28

  • 011

    piston, top accumulator

    • Part Number: 27576-PX4-800

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    spring, top accumulator

    • Part Number: 27577-PX4-800

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    cover, top accumulator

    • Part Number: 27580-P0X-000

    '


    KA - US - 49 State Spec

    • $52.62

  • 014

    spring, third accumulator

    • Part Number: 27583-P0X-900

    '


    KA - US - 49 State Spec

    • $8.75

  • 015

    pipe (8x60)

    • Part Number: 27588-PX4-000

    '


    KA - US - 49 State Spec

    • $4.43

  • 016

    bolt, flange (6x90)

    • Part Number: 90004-PC9-000

    '


    KA - US - 49 State Spec

    • $5.12

  • 017

    bolt, special (6x157)

    • Part Number: 90004-P0X-000

    '


    KA - US - 49 State Spec

    • $10.13

  • 018

    bolt, flange (6x152)

    • Part Number: 90019-PF4-000

    '


    KA - US - 49 State Spec

    • $6.52

  • 019

    o-ring (33.6x2.2)

    • Part Number: 91302-PS5-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 020

    o-ring (17.8x1.9) (nok)

    • Part Number: 91308-PH0-013

    '


    KA - US - 49 State Spec

    • $2.08

  • 021

    o-ring (35.2x2.4) (nok)

    • Part Number: 91310-PA9-004

    '


    KA - US - 49 State Spec

    • $2.80

  • 022

    o-ring (18.3x2.4) (nok)

    • Part Number: 91321-PF4-004

    '


    KA - US - 49 State Spec

    • $2.08

  • 023

    o-ring (28.3x2.4) (nok)

    • Part Number: 91324-PF4-004

    '


    KA - US - 49 State Spec

    • $2.37

  • 024

    o-ring (21.2x2.4) (arai)

    • Part Number: 91331-PC9-003

    '


    KA - US - 49 State Spec

    • $2.23

  • 025

    o-ring (29x2.4) (nok)

    • Part Number: 91344-PC9-004

    '


    KA - US - 49 State Spec

    • $2.55

  • 026

    o-ring (31x2.7) (arai)

    • Part Number: 91344-580-000

    '


    KA - US - 49 State Spec

    • $2.70

  • 027

    circlip (inner) (15mm)

    • Part Number: 94521-15000

    '


    KA - US - 49 State Spec

    • $0.68

  • 028

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 029

    bolt, flange (6x55)

    • Part Number: 95701-06055-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 030

    bolt, flange (6x80)

    • Part Number: 95701-06080-08

    '


    KA - US - 49 State Spec

    • $1.40

  • 031

    bolt, flange (6x85)

    • Part Number: 95701-06085-08

    '


    KA - US - 49 State Spec

    • $1.57

Back to Top
