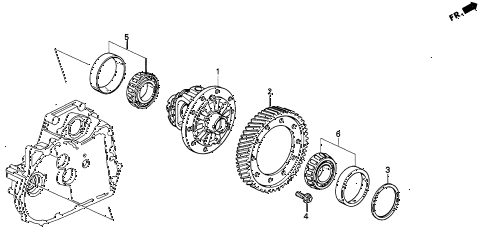

1997 CL PRE2.2 2 DOOR 4AT AT DIFFERENTIAL GEAR (1) diagram
Back to Top
case, differentialgear, final drivenshim a (76mm) (2.20)shim b (76mm) (2.25)shim c (76mm) (2.30)shim d (76mm) (2.35)shim e (76mm) (2.40)shim f (76mm) (2.45)shim g (76mm) (2.50)shim h (76mm) (2.55)shim i (76mm) (2.60)shim j (76mm) (2.65)shim k (76mm) (2.70)shim l (76mm) (2.75)shim m (76mm) (2.80)shim n (76mm) (2.85)shim o (76mm) (2.90)shim p (76mm) (2.95)shim q (76mm) (3.00)shim r (76mm) (3.05)bolt, flange (10mm)bearing, special taper (40x80x19.75)bearing, special taper (40x76.2x18)
