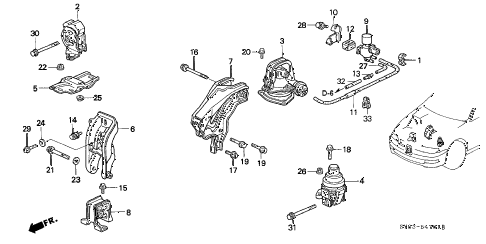

1997 CL PRE2.2 2 DOOR 4AT AT ENGINE MOUNT (2) diagram
  • 001

    clamp, tube (7.5x2)

    • Part Number: 17205-PC6-000

    '


    KA - US - 49 State Spec

    • $5.43

  • 002

    rubber, transmission mounting (at)

    • Part Number: 50806-SV4-981

    '


    KA - US - 49 State Spec

    • $115.53

  • 003

    rubber, rr. engine insulator (at)

    • Part Number: 50810-SV4-J82

    '


    KA - US - 49 State Spec

    • $337.28

  • 004

    rubber assy., engine side mounting

    • Part Number: 50820-SV4-J01

    '


    KA - US - 49 State Spec

    • $265.52

  • 005

    bracket, transmission mounting(at)

    • Part Number: 50825-SM4-981

    '


    KA - US - 49 State Spec

    • $27.45

  • 006

    bracket, fr. engine mounting

    • Part Number: 50826-SV4-000

    '


    KA - US - 49 State Spec

    • $24.40

  • 007

    bracket, rr. engine mounting (at)

    • Part Number: 50827-SM4-J83

    '


    KA - US - 49 State Spec

    • $67.27

  • 008

    stopper, fr. engine (at)

    • Part Number: 50840-SV4-980

    '


    KA - US - 49 State Spec

    • $51.13

  • 009

    valve assy., electronic control mounting solenoid

    • Part Number: 50913-SV7-A01

    '


    KA - US - 49 State Spec

    • $76.88

  • 010

    stay

    • Part Number: 50915-SV7-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    tube, electronic control mountsolenoid

    • Part Number: 50916-SV4-J80

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    rubber, mounting

    • Part Number: 50917-SV7-A00

    '


    KA - US - 49 State Spec

    • $3.85

  • 013

    joint (#115) (two-way)

    • Part Number: 50919-SV7-A00

    '


    KA - US - 49 State Spec

    • $10.45

  • 014

    bolt-washer (10x30)

    • Part Number: 90162-SV4-000

    '


    KA - US - 49 State Spec

    • $0.87

  • 015

    bolt, flange (12x25)

    • Part Number: 90163-SC2-000

    '


    KA - US - 49 State Spec

    • $4.67

  • 016

    bolt, flange (12x120)

    • Part Number: 90167-SM4-000

    '


    KA - US - 49 State Spec

    • $11.55

  • 017

    bolt, flange (12x30)

    • Part Number: 90169-SM4-000

    '


    KA - US - 49 State Spec

    • $4.57

  • 018

    bolt, flange (12x45)

    • Part Number: 90170-S30-000

    '


    KA - US - 49 State Spec

    • $6.42

  • 019

    bolt, flange (12x60)

    • Part Number: 90173-SM4-000

    '


    KA - US - 49 State Spec

    • $5.95

  • 020

    bolt, flange (10x22)

    • Part Number: 90174-SM4-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 021

    bolt,flange,12x95

    • Part Number: 90176-SM4-010

    '


    KA - US - 49 State Spec

    • $5.10

  • 022

    nut, flange (10mm)

    • Part Number: 90371-SM4-000

    '


    KA - US - 49 State Spec

    • $2.58

  • 023

    washer, plain (12mm)

    • Part Number: 90504-SB0-000

    '


    KA - US - 49 State Spec

    • $2.15

  • 024

    washer, fr. bracket

    • Part Number: 90552-SV4-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 025

    nut, flange (10mm)

    • Part Number: 94050-10080

    '


    KA - US - 49 State Spec

    • $1.05

  • 026

    nut, flange (12mm)

    • Part Number: 94050-12080

    '


    KA - US - 49 State Spec

    • $1.00

  • 027

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec

    • $52.80

  • 028

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 029

    bolt, flange (10x40)

    • Part Number: 95801-10040-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 030

    bolt, flange (12x105)

    • Part Number: 95801-12105-08

    '


    KA - US - 49 State Spec

    • $2.73

  • 031

    bolt, flange (12x115)

    • Part Number: 95801-12115-08

    '


    KA - US - 49 State Spec

    • $3.00

  • 032

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec

    • $52.80
