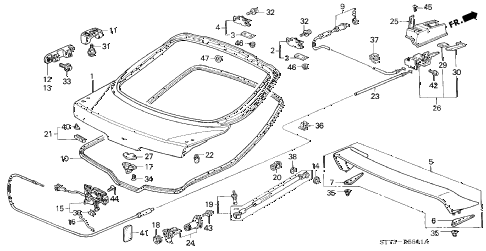

1997 INTEGRA TYPE-R 3 DOOR 5MT TAILGATE (2) diagram
Back to Top
tailgate (dot)hinge, r. tailgateseal, tailgate hingeseal, tailgate hingehinge, l. tailgatespoiler assy., tailgate *nh0*gasket, l. spongeseal, fuel lid opener (green)cable, fuel lid openerweatherstrip, tailgatestopper a, tailgate sidestopper b, r. tailgate sidestopper b, l. tailgate sideseal, open stay pinlock, tailgaterod, tailgate lockstriker, tailgategrommet, key cylinderstay assy., r. tailgate opencover, open stay (upper)stopper, rr. combinationstopper, tailgatecable, tailgate openercylinder, trunkcover, tailgate opener *nh167l*opener assy., tailgate *nh167l*shim, tailgate striker (2.0)shim, tailgate striker (1.0)knob assy., fuel opener *nh167l*knob assy., tailgate opener *nh264l*bolt, tailgate stop (6mm)bolt-washer (8x20)bolt-washer (8x20)bolt, flange (6x15)bolt, lock strikernut, spoiler cap (6mm)nut, spoiler cap (6mm)clip, fuel lid openerclip, trunk opener cablee-ring (6mm)snap, tailgate lockclip, canoeclip a, door weatherstripcushion, wire harness (50x100)bolt-washer (6x12)bolt-washer (6x20)screw, flat (6x16)screw, tapping (4x8)nut-washer (8mm)nut-washer (8mm)plug, blind (15mm)
