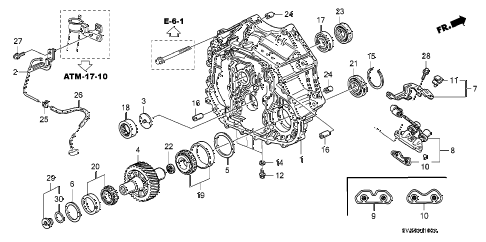

1997 TL BAS3.2 4 DOOR 4AT TORQUE CONVERTER HOUSING (V6) diagram
  • 001

    case, torque converter

    • Part Number: 21110-P5H-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    pipe, breather

    • Part Number: 21321-PY3-A01

    '


    KA - US - 49 State Spec

    • $11.23

  • 003

    plate, oil guide

    • Part Number: 23225-PY4-000

    '


    KA - US - 49 State Spec

    • $3.88

  • 004

    shaft, secondary gear

    • Part Number: 23231-PY4-E01

    '


    KA - US - 49 State Spec

    • $281.85

  • 006

    shim a (75mm) (1.56)

    • Part Number: 23941-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim b (75mm) (1.59)

    • Part Number: 23942-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim c (75mm) (1.62)

    • Part Number: 23943-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim d (75mm) (1.65)

    • Part Number: 23944-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim e (75mm) (1.68)

    • Part Number: 23945-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim f (75mm) (1.71)

    • Part Number: 23946-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim g (75mm) (1.74)

    • Part Number: 23947-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim h (75mm) (1.77)

    • Part Number: 23948-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim i (75mm) (1.80)

    • Part Number: 23949-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim j (75mm) (1.83)

    • Part Number: 23950-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim k (75mm) (1.86)

    • Part Number: 23951-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim l (75mm) (1.89)

    • Part Number: 23952-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim m (75mm) (1.92)

    • Part Number: 23953-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim n (75mm) (1.95)

    • Part Number: 23954-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim o (75mm) (1.98)

    • Part Number: 23955-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim p (75mm) (2.01)

    • Part Number: 23956-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim q (75mm) (2.04)

    • Part Number: 23957-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim r (75mm) (2.07)

    • Part Number: 23958-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim s (75mm) (2.10)

    • Part Number: 23959-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim t (75mm) (2.13)

    • Part Number: 23960-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim u (75mm) (2.16)

    • Part Number: 23961-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim v (75mm) (2.19)

    • Part Number: 23962-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim w (75mm) (2.22)

    • Part Number: 23963-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim x (75mm) (2.25)

    • Part Number: 23964-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim y (75mm) (2.28)

    • Part Number: 23965-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim z (75mm) (2.31)

    • Part Number: 23966-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim aa (75mm) (2.34)

    • Part Number: 23967-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim ab (75mm) (2.37)

    • Part Number: 23968-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim ac (75mm) (2.40)

    • Part Number: 23969-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 006

    shim ad (75mm) (2.43)

    • Part Number: 23970-P5D-000

    '


    KA - US - 49 State Spec

    • $9.27

  • 007

    stay, lock-up solenoid connector

    • Part Number: 27922-P5H-A00

    '


    KA - US - 49 State Spec

    • $9.93

  • 008

    solenoid assy., lock-up (keihin)

    • Part Number: 28300-PY4-024

    '


    KA - US - 49 State Spec

    • $262.40

  • 008

    solenoid assy., lock-up (keihin)

    • Part Number: 28300-PY4-034

    '


    KA - US - 49 State Spec

    • $262.40

  • 009

    filter assy., lock-up solenoid(shindengen)

    • Part Number: 28320-PY4-003

    '


    KA - US - 49 State Spec

    • $25.75

  • 010

    filter assy., lock-up solenoid(keihin)

    • Part Number: 28320-PY4-004

    '


    KA - US - 49 State Spec

    • $25.75

  • 011

    clip, oxygen sensor harness

    • Part Number: 36534-PP8-003

    '


    KA - US - 49 State Spec

    • $3.55

  • 012

    bolt, sealing (8mm)

    • Part Number: 90024-612-000

    '


    KA - US - 49 State Spec

    • $3.13

  • 013

    bolt, sealing (36mm)

    • Part Number: 90082-PY5-000

    '


    KA - US - 49 State Spec

    • $17.18

  • 014

    gasket (8mm)

    • Part Number: 90471-580-000

    '


    KA - US - 49 State Spec

    • $1.67

  • 016

    pin, dowel (14x25)

    • Part Number: 90705-PA9-000

    '


    KA - US - 49 State Spec

    • $5.00

  • 017

    bearing, ball (42x70x11) (ntn)

    • Part Number: 91001-PR9-003

    '


    KA - US - 49 State Spec

    • $57.60

  • 018

    bearing, needle (38.5x67x17)

    • Part Number: 91102-PF0-003

    '


    KA - US - 49 State Spec

    • $46.57

  • 019

    bearing, taper (55x90x23) (ntn)

    • Part Number: 91121-PR8-008

    '


    KA - US - 49 State Spec

    • $107.55

  • 020

    bearing, taper (32009) (ntn)

    • Part Number: 91124-PS3-008

    '


    KA - US - 49 State Spec

    • $64.80

  • 021

    oil seal (55x75x11) (arai)

    • Part Number: 91201-PY5-003

    '


    KA - US - 49 State Spec

    • $12.43

  • 021

    oil seal (55x75x11) (nok)

    • Part Number: 91201-PY5-005

    '


    KA - US - 49 State Spec

    • $12.43

  • 022

    oil seal (37.5x47x7) (arai)

    • Part Number: 91202-PY5-003

    '


    KA - US - 49 State Spec

    • $6.17

  • 023

    oil seal (46x70x8) (nok)

    • Part Number: 91207-PR9-003

    '


    KA - US - 49 State Spec

    • $7.83

  • 023

    oil seal (46x70x8) (arai)

    • Part Number: 91207-PY4-004

    '


    KA - US - 49 State Spec

    • $8.62

  • 024

    pin, dowel (14x20)

    • Part Number: 94301-14200

    '


    KA - US - 49 State Spec

    • $1.37

  • 025

    clamp, tube (d8.5)

    • Part Number: 95002-40850-08

    '


    KA - US - 49 State Spec

    • $1.47

  • 026

    bulk hose, vacuum (4.5x1000)

    • Part Number: 95005-45001-20M

    '


    KA - US - 49 State Spec

    • $22.22

  • 027

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 028

    bolt, flange (6x22)

    • Part Number: 95701-06022-08

    '


    KA - US - 49 State Spec

    • $0.98

  • NI

    bolt set, sealing

    • Part Number: 90082-PY5-305

    '


    KA - US - 49 State Spec

    • $4.55
