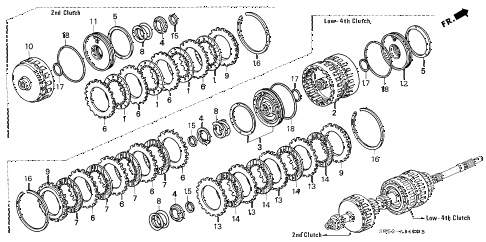

View large diagramHide diagramView diagramView printable catalog
  • 001

    disk, second clutch

    • Part Number: 22344-P5D-003

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    guide, low & fourth clutch

    • Part Number: 22510-P5H-003

    '


    KA - US - 49 State Spec

    • $475.45

  • 003

    piston, low clutch

    • Part Number: 22520-PY4-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    seat, return spring

    • Part Number: 22533-PX4-010

    '


    KA - US - 49 State Spec

    • $5.88

  • 005

    spring, clutch disk

    • Part Number: 22537-PY4-020

    '


    KA - US - 49 State Spec

    • $33.60

  • 006

    plate, clutch

    • Part Number: 22543-PY4-003

    '


    KA - US - 49 State Spec

    • $33.60

  • 007

    disk, clutch

    • Part Number: 22544-P5D-003

    '


    KA - US - 49 State Spec

    • $23.92

  • 008

    spring, clutch return

    • Part Number: 22545-PY4-003

    '


    KA - US - 49 State Spec

    • $17.45

  • 009

    plate, clutch end (1) (2.1mm)

    • Part Number: 22551-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (2) (2.2mm)

    • Part Number: 22552-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (3) (2.3mm)

    • Part Number: 22553-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (4) (2.4mm)

    • Part Number: 22554-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (5) (2.5mm)

    • Part Number: 22555-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (6) (2.6mm)

    • Part Number: 22556-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (7) (2.7mm)

    • Part Number: 22557-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (8) (2.8mm)

    • Part Number: 22558-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 009

    plate, clutch end (9) (2.9mm)

    • Part Number: 22559-PY4-003

    '


    KA - US - 49 State Spec

    • $33.58

  • 010

    guide, second clutch

    • Part Number: 22610-PY4-003

    '


    KA - US - 49 State Spec

    • $216.65

  • 011

    piston, second clutch

    • Part Number: 22620-PY4-000

    '


    KA - US - 49 State Spec

    • $97.77

  • 012

    piston, third clutch

    • Part Number: 22670-P5D-000

    '


    KA - US - 49 State Spec

    • $73.27

  • 013

    plate, third clutch

    • Part Number: 22643-PY4-003

    '


    KA - US - 49 State Spec

    • $33.60

  • 014

    disk, third clutch

    • Part Number: 22644-P5D-003

    '


    KA - US - 49 State Spec

    • $23.92

  • 015

    circlip (outer) (47mm)

    • Part Number: 90603-PX4-000

    '


    KA - US - 49 State Spec

    • $2.52

  • 016

    ring, snap (137mm)

    • Part Number: 90605-PY4-000

    '


    KA - US - 49 State Spec

    • $5.73

  • 017

    o-ring (46.8x2.2) (nok)

    • Part Number: 91302-PX4-004

    '


    KA - US - 49 State Spec

    • $4.15

  • 018

    o-ring (119.1x2.3) (nok)

    • Part Number: 91303-PY4-004

    '


    KA - US - 49 State Spec

    • $5.30
