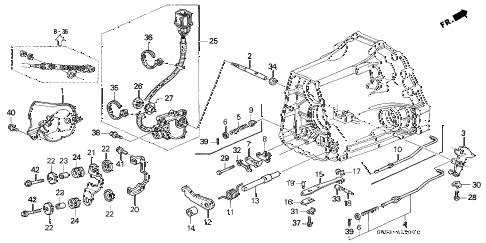

1997 TL BAS3.2 4 DOOR 4AT AT CONTROL LEVER (V6) diagram
Back to Top
cover, control wireshaft, controllever, detentrod assy., parking brakewasher, parking brake rodwasher, parking brake rodholder, parking brake rod (hitachi)guide, parking brake rodspring, parking pawlpawl, parking brakeshaft, parkingsleeve, parking shaftspring, detentplate, detent springguide, detent springpin, detentpin, fixbase, control wire staystay, control wirewasher, floating (6mm)washer, floating (6mm)washer, floating (6mm)washer, floating (6mm)collar, floating (6.8)collar, floating (6.8)rubber, floatingrubber, floatingsensor assy., positionnut, hex. special (16mm)washer, lock (16mm)bolt, hex. (6mm)bolt, hex. (6mm)washer, lock (6mm)washer, lock (6mm)washer, tongued (6mm)bearing, needle (3.5x8x11)oil seal (12x22x7) (arai)clip, harness band (145.2mm) (natural)band, wire harness (110mm) (brown)bolt, hex. (6x20)bolt-washer (6x20)pin, spring (2.5x12)pin, spring (2.5x12)bolt, flange (6x12)bolt, flange (6x14)bolt, flange (6x25)bolt, flange (6x25)
