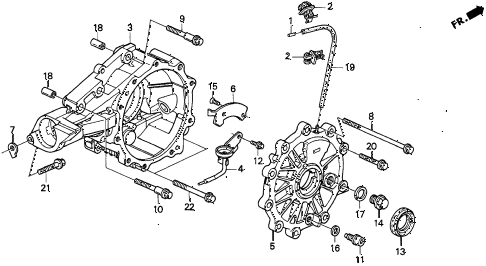

1997 TL BAS3.2 4 DOOR 4AT AT DIFFERENTIAL CARRIER (V6) diagram
Back to Top
plug, breather tubeclamp, breather tubeclamp, breather tubecarrier, differentialpipe, oil guidecover, differential carrierplate, breathershim a (26mm) (1.9)shim b (26mm) (2.0)shim c (26mm) (2.1)shim d (26mm) (2.2)shim e (26mm) (2.3)shim f (26mm) (2.4)shim g (26mm) (2.5)shim h (26mm) (2.6)shim i (26mm) (2.7)shim j (26mm) (2.8)shim k (26mm) (2.9)shim l (26mm) (3.0)bolt, flange (12x133)bolt, special flange (12x60)bolt, sealing (12x60)bolt, plug (14mm)bolt, special flange (6x12)oil seal (42x63x9) (arai)bolt, drain plug (20mm)screw, flat (6x14)washer, drain plug (14mm)washer, drain plug (20mm)pin, dowel (14x20)pin, dowel (14x20)bulk hose, vacuum (4.5x1000)bolt, flange (10x40)bolt, flange (12x55)bolt, flange (12x60)
