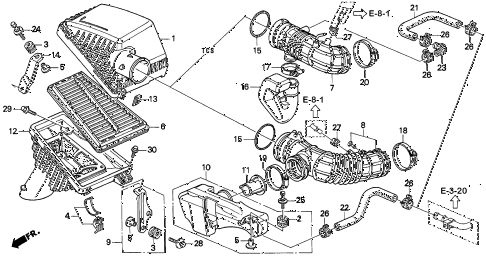

1997 TL BAS3.2 4 DOOR 4AT AIR CLEANER (V6) diagram
  • 001

    cover, air cleaner

    • Part Number: 17211-PY3-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    rubber a, air cleaner housing mounting

    • Part Number: 17212-PE2-000

    '


    KA - US - 49 State Spec

    • $3.87

  • 003

    rubber, air cleaner housing mounting

    • Part Number: 17213-PD1-000

    '


    KA - US - 49 State Spec

    • $4.77

  • 004

    clip set, wire

    • Part Number: 17215-PY3-000

    '


    KA - US - 49 State Spec

    • $9.22

  • 005

    collar, air cleaner (toyo roki)

    • Part Number: 17216-PE2-003

    '


    KA - US - 49 State Spec

    • $3.60

  • 006

    element assy., air cleaner (filtech)

    • Part Number: 17220-PY3-505

    '


    KA - US - 49 State Spec

    • $36.72

  • 008

    tube, air flow

    • Part Number: 17228-P5G-A00

    '


    KA - US - 49 State Spec

    • $97.00

  • 009

    stay assy., air cleaner

    • Part Number: 17229-PY3-000

    '


    KA - US - 49 State Spec

    • $26.63

  • 010

    chamber assy., second resonator

    • Part Number: 17230-P5G-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    adapter, resonator

    • Part Number: 17235-P5G-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    case assy., air cleaner

    • Part Number: 17240-PY3-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    stopper, air cleaner clip

    • Part Number: 17243-PY3-000

    '


    KA - US - 49 State Spec

    • $5.60

  • 014

    stay, air cleaner

    • Part Number: 17245-PY3-000

    '


    KA - US - 49 State Spec

    • $8.78

  • 015

    spring, air flow tube

    • Part Number: 17249-PY3-000

    '


    KA - US - 49 State Spec

    • $5.95

  • 018

    band c, air flow tube

    • Part Number: 17315-PP8-003

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    clamp, air flow tube (75)

    • Part Number: 17316-PN3-003

    '


    KA - US - 49 State Spec

    • $17.50

  • 022

    tube a, air suction

    • Part Number: 18795-PY3-000

    '


    KA - US - 49 State Spec

    • $56.22

  • 024

    bolt-washer, special (6x25)

    • Part Number: 90010-PT2-000

    '


    KA - US - 49 State Spec

    • $0.30

  • 025

    bolt, condenser

    • Part Number: 90133-SD2-000

    '


    KA - US - 49 State Spec

    • $3.98

  • 026

    clamp, tube (d25)

    • Part Number: 90602-PWA-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 027

    clamp, tube (d17)

    • Part Number: 91405-PM5-004

    '


    KA - US - 49 State Spec

    • $5.37

  • 028

    bolt-washer (6x20)

    • Part Number: 90775-PG7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 029

    bolt-washer (6x14)

    • Part Number: 93401-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 030

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
