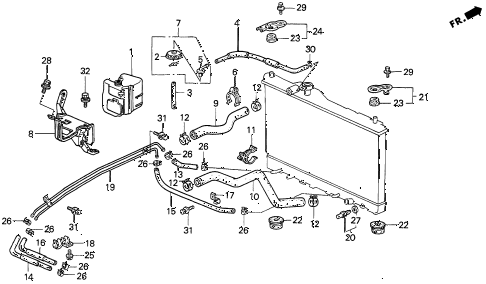

1997 TL BAS3.2 4 DOOR 4AT RADIATOR HOSE (V6) diagram
  • 001

    tank, reserve

    • Part Number: 19101-P5A-000

    '


    KA - US - 49 State Spec

    • $61.97

  • 002

    cap, reserve tank

    • Part Number: 19102-PM5-A00

    '


    KA - US - 49 State Spec

    • $1.67

  • 003

    hose, reserve tank

    • Part Number: 19103-P5G-000

    '


    KA - US - 49 State Spec

    • $4.87

  • 004

    tube, reserve tank

    • Part Number: 19104-P5G-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    joint, reserve tank

    • Part Number: 19106-PA0-020

    '


    KA - US - 49 State Spec

    • $2.02

  • 006

    clamp, reserve tank tube

    • Part Number: 19109-PY3-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 008

    bracket, reserve tank

    • Part Number: 19120-P5G-000

    '


    KA - US - 49 State Spec

    • $63.77

  • 009

    hose, water (upper)

    • Part Number: 19501-PY3-000

    '


    KA - US - 49 State Spec

    • $21.77

  • 010

    hose, water (lower)

    • Part Number: 19502-PY3-010

    '


    KA - US - 49 State Spec

    • $32.37

  • 011

    clamp, water hose (lower)

    • Part Number: 19503-PY3-003

    '


    KA - US - 49 State Spec

    • $5.88

  • 012

    clip, hose (36.5mm) (chuo spring)

    • Part Number: 19511-PH7-003

    '


    KA - US - 49 State Spec

    • $6.38

  • 013

    hose (185mm) (atf) (bs)

    • Part Number: 25213-PY3-901

    '


    KA - US - 49 State Spec

    • $11.25

  • 014

    hose (405mm) (atf)

    • Part Number: 25214-PY3-901

    '


    KA - US - 49 State Spec

    • $32.60

  • 015

    hose (600mm) (atf)

    • Part Number: 25215-PY3-902

    '


    KA - US - 49 State Spec

    • $38.92

  • 016

    hose (435mm)

    • Part Number: 25216-PY3-901

    '


    KA - US - 49 State Spec

    • $32.60

  • 017

    clamp, hose (atf)

    • Part Number: 25217-PY3-900

    '


    KA - US - 49 State Spec

    • $5.97

  • 018

    clamp, hose (atf)

    • Part Number: 25218-PY3-900

    '


    KA - US - 49 State Spec

    • $13.85

  • 019

    pipe b (atf)

    • Part Number: 25930-PY3-900

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    sensor, thermo (a-90) (tec)

    • Part Number: 37773-PH2-004

    '


    KA - US - 49 State Spec

    • $53.20

  • 021

    bracket, r. radiator mounting (upper)

    • Part Number: 74171-SP0-000

    '


    KA - US - 49 State Spec

    • $13.72

  • 021

    bracket, r. radiator mounting (upper)

    • Part Number: 74171-SP0-010

    '


    KA - US - 49 State Spec

    • $13.72

  • 022

    cushion, radiator mounting (lower)

    • Part Number: 74172-SS0-000

    '


    KA - US - 49 State Spec

    • $13.93

  • 023

    cushion, radiator mounting (upper)

    • Part Number: 74173-SJ4-000

    '


    KA - US - 49 State Spec

    • $3.42

  • 024

    bracket, l. radiator mounting (upper)

    • Part Number: 74176-SP0-000

    '


    KA - US - 49 State Spec

    • $13.63

  • 024

    bracket, l. (upper)

    • Part Number: 74176-SP0-010

    '


    KA - US - 49 State Spec

    • $13.63

  • 025

    bolt, gear box bracket (10x22)

    • Part Number: 90109-SP0-000

    '


    KA - US - 49 State Spec

    • $3.08

  • 026

    clip, oil pipe

    • Part Number: 90635-PT0-802

    '


    KA - US - 49 State Spec

    • $1.35

  • 027

    o-ring (13.5x1.4)

    • Part Number: 91307-PH7-660

    '


    KA - US - 49 State Spec

    • $1.85

  • 028

    bolt-washer (6x10)

    • Part Number: 93401-06010-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 029

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 031

    bolt, flange (6x10)

    • Part Number: 95701-06010-08

    '


    KA - US - 49 State Spec

    • $0.87

  • 032

    bolt, flange (8x12)

    • Part Number: 95701-08012-08

    '


    KA - US - 49 State Spec

    • $0.98
