TAILLIGHT
View large diagramHide diagramView diagramView printable catalogTranslate

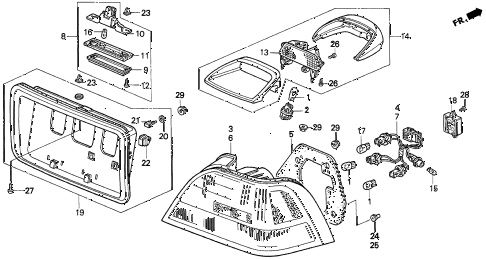

1997 TL BAS3.2 4 DOOR 4AT TAILLIGHT diagram

  • 001

    bulb, wedge (12v 21w) (stanley)

    Part Number: 33303-SL4-003

    ''


    KA - US - 49 State Spec

    • $4.60

  • 002

    socket

    Part Number: 33304-SV4-A01

    ''


    KA - US - 49 State Spec

    • $9.25

  • 003

    lamp, r.

    Part Number: 33501-SW5-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    socket, r.

    Part Number: 33502-SW5-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    gasket, base

    Part Number: 33503-SW5-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    lamp unit, l.

    Part Number: 33551-SW5-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    socket, l.

    Part Number: 33552-SW5-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    light assy., license

    Part Number: 34100-SS0-013

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    lens

    Part Number: 34101-SS0-003

    ''


    KA - US - 49 State Spec

    • $9.63

  • 010

    housing

    Part Number: 34102-SS0-003

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    seal, gasket

    Part Number: 34103-SS0-003

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    screw, tapping (4x20)

    Part Number: 34104-SE3-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    reflector, high mount stop light

    Part Number: 34271-SV4-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    lamp unit *nh264l*

    Part Number: 34274-SV4-A01ZF
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    lamp unit *yr169l*

    Part Number: 34274-SV4-A01ZK
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    bulb (12v 5w 3cp) (stanley)

    Part Number: 34901-SB0-671

    ''


    KA - US - 49 State Spec

    • $2.25

  • 016

    bulb (12v 8w)

    Part Number: 34901-SE3-003

    ''


    KA - US - 49 State Spec

    • $1.97

  • 017

    bulb (12v 21w/5w) (stanley)

    Part Number: 34906-ST5-003

    ''


    KA - US - 49 State Spec

    • $5.35

  • 018

    sensor, stop lamp failure

    Part Number: 37540-SM4-003

    ''


    KA - US - 49 State Spec

    • $43.38

  • 019

    garnish, rr. license *b68p*

    Part Number: 74890-SW5-A01ZA
    (PACIFIC BLUE PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    garnish, rr. license *g79p*

    Part Number: 74890-SW5-A01ZC
    (BAYERN GREEN PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    garnish, rr. license *yr506m*

    Part Number: 74890-SW5-A01ZH
    (ARBERE TAUPE METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    garnish, rr. license *yr509p*

    Part Number: 74890-SW5-A01ZJ
    (GRANITE SILVER PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    garnish, rr. license *nh585p*

    Part Number: 74890-SW5-A01ZK
    (CAYMAN WHITE PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    garnish, rr. license *nh592p*

    Part Number: 74890-SW5-A01ZL
    (STARLIGHT BLACK PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    gasket, seal

    Part Number: 75523-SS0-000

    ''


    KA - US - 49 State Spec

    • $2.00

  • 021

    bolt, special (5mm)

    Part Number: 75524-SS0-000

    ''


    KA - US - 49 State Spec

    • $3.43

  • 022

    clip, rr. panel garnish

    Part Number: 75525-SD4-013

    ''


    KA - US - 49 State Spec

    • $3.82

  • 023

    grommet, special screw (m4) (yellow)

    Part Number: 90521-SS0-003

    ''


    KA - US - 49 State Spec

    • $2.88

  • 024

    grommet, r. rr. combination (white)

    Part Number: 90650-SL9-003

    ''


    KA - US - 49 State Spec

    • $4.78

  • 025

    grommet, l. rr. combination (gray)

    Part Number: 90655-SL9-003

    ''


    KA - US - 49 State Spec

    • $4.78

  • 026

    screw, tapping (4x12)

    Part Number: 93901-24320

    ''


    KA - US - 49 State Spec

    • $0.65

  • 027

    screw, tapping (4x16)

    Part Number: 93903-444J0

    ''


    KA - US - 49 State Spec

    • $1.15

  • 028

    screw, tapping (4x12)

    Part Number: 93911-14210

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 029

    nut, flange (5mm)

    Part Number: 94050-05080

    ''


    KA - US - 49 State Spec

    • $0.27
