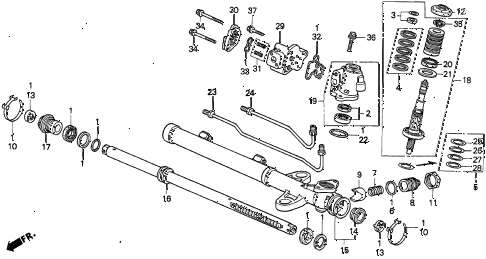

View large diagramHide diagramView diagramView printable catalog
  • 001

    seal kit a, power steering (rotary valve)

    • Part Number: 06531-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    oil seal set, rotary valve

    • Part Number: 06532-ST0-000

    '


    KA - US - 49 State Spec

    • $23.75

  • 003

    seal set, power steering valve(rotary valve)

    • Part Number: 06534-ST0-010

    '


    KA - US - 49 State Spec

    • $23.74

  • 004

    ring set, power steering seal (rotary valve)

    • Part Number: 06535-SW5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    shim set (44mm)

    • Part Number: 06536-SW5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    o-ring, rack guide (nok)

    • Part Number: 53412-SM4-J61

    '


    KA - US - 49 State Spec

    • $2.73

  • 007

    spring, rack guide pressure

    • Part Number: 53413-SD4-951

    '


    KA - US - 49 State Spec

    • $4.07

  • 008

    screw, rack guide

    • Part Number: 53414-SM4-J60

    '


    KA - US - 49 State Spec

    • $15.80

  • 009

    guide, steering rack

    • Part Number: 53416-SM4-J61

    '


    KA - US - 49 State Spec

    • $27.22

  • 010

    band, driven pinion

    • Part Number: 53449-SF1-J60

    '


    KA - US - 49 State Spec

    • $7.43

  • 011

    nut, rack screw lock

    • Part Number: 53458-SM4-J60

    '


    KA - US - 49 State Spec

    • $7.50

  • 012

    cover, pinion dust

    • Part Number: 53501-SW5-000

    '


    KA - US - 49 State Spec

    • $5.42

  • 013

    washer, tie rod lock

    • Part Number: 53536-SS0-000

    '


    KA - US - 49 State Spec

    • $4.50

  • 014

    rubber, stopper

    • Part Number: 53537-SW5-003

    '


    KA - US - 49 State Spec

    • $9.68

  • 015

    housing sub-assy., steering rack

    • Part Number: 53608-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    rack, steering

    • Part Number: 53626-SZ5-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    end, cylinder

    • Part Number: 53630-SZ5-003

    '


    KA - US - 49 State Spec

    • $29.02

  • 018

    valve sub-assy., steering

    • Part Number: 53641-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    housing, valve

    • Part Number: 53645-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    oil seal, cylinder end (27x41x5.5)

    • Part Number: 53660-SW5-003

    '


    KA - US - 49 State Spec

    • $12.18

  • 021

    ring, back-up valve

    • Part Number: 53661-SW5-000

    '


    KA - US - 49 State Spec

    • $4.58

  • 022

    o-ring (44.5x2)

    • Part Number: 53666-SW5-003

    '


    KA - US - 49 State Spec

    • $11.78

  • 023

    pipe a, cylinder

    • Part Number: 53670-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 024

    pipe b, cylinder

    • Part Number: 53671-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 025

    shim a (44mm) (0.10mm)

    • Part Number: 53672-SW5-000

    '


    KA - US - 49 State Spec

    • $6.40

  • 026

    shim b (44mm) (0.15mm)

    • Part Number: 53673-SW5-000

    '


    KA - US - 49 State Spec

    • $6.40

  • 027

    shim c (44mm) (0.20mm)

    • Part Number: 53674-SW5-000

    '


    KA - US - 49 State Spec

    • $6.40

  • 028

    shim d (44mm) (0.25mm)

    • Part Number: 53675-SW5-000

    '


    KA - US - 49 State Spec

    • $6.40

  • 029

    body, valve

    • Part Number: 53691-SW5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 030

    port, sensor

    • Part Number: 53693-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 031

    spring set, assist control valve

    • Part Number: 53697-SW5-003

    '


    KA - US - 49 State Spec

    • $3.77

  • 032

    seal, valve housing

    • Part Number: 53698-SW5-003

    '


    KA - US - 49 State Spec

    • $7.78

  • 033

    seal, sensor port (nok)

    • Part Number: 53699-SW5-003

    '


    KA - US - 49 State Spec

    • $5.90

  • 034

    bolt, flange (6x52)

    • Part Number: 90101-SW5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 035

    circlip, outer (20mm)

    • Part Number: 94510-20000

    '


    KA - US - 49 State Spec

    • $0.78

  • 036

    bolt, flange (8x28)

    • Part Number: 95701-08028-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 037

    bolt, flange (6x25)

    • Part Number: 95801-06025-08

    '


    KA - US - 49 State Spec

    • $0.98

Back to Top
