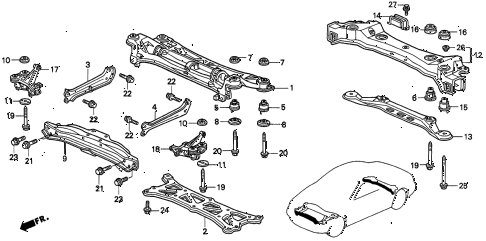

1997 TL BAS3.2 4 DOOR 4AT CROSS BEAM (V6) diagram
  • 001

    beam, rr.

    • Part Number: 50200-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    plate, rr. beam (lower)

    • Part Number: 50205-SZ5-000

    '


    KA - US - 49 State Spec

    • $161.92

  • 003

    bridge, r. beam (fr/rr)

    • Part Number: 50210-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    bridge, l. beam (fr/rr)

    • Part Number: 50220-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    insulator a, sub-frame mounting

    • Part Number: 50230-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    insulator a, sub-frame mounting (lower)

    • Part Number: 50230-SV7-A00

    '


    KA - US - 49 State Spec

    • $45.45

  • 007

    insulator b, sub-frame mounting

    • Part Number: 50231-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    washer, sub-frame mounting

    • Part Number: 50232-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    beam, fr.

    • Part Number: 50253-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    insulator e, sub-frame mounting

    • Part Number: 50281-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    washer, sub-frame mounting

    • Part Number: 50282-SP0-000

    '


    KA - US - 49 State Spec

    • $5.88

  • 012

    beam, rr. suspension cross

    • Part Number: 50300-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    stiffener, rr. crossbeam

    • Part Number: 50310-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    damper, cross beam

    • Part Number: 50320-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    insulator e, sub-frame mounting (lower)

    • Part Number: 50330-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    insulator e, sub-frame mounting (upper)

    • Part Number: 50331-SZ5-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    bracket set, r. fr. beam

    • Part Number: 51010-SP0-900

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    bracket set, l. fr. beam

    • Part Number: 51011-SP0-900

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    bolt, flange (12x116)

    • Part Number: 90163-SP0-000

    '


    KA - US - 49 State Spec

    • $11.93

  • 020

    bolt, flange (12x123)

    • Part Number: 90164-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    bolt, flange (10x45)

    • Part Number: 90166-SP0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    bolt, flange (10x25)

    • Part Number: 90168-SP0-000

    '


    KA - US - 49 State Spec

    • $2.27

  • 023

    bolt, flange (10x25)

    • Part Number: 90169-SL0-000

    '


    KA - US - 49 State Spec

    • $2.27

  • 024

    bolt, flange (10x22)

    • Part Number: 90184-SP0-000

    '


    KA - US - 49 State Spec

    • $3.40

  • 025

    bolt, flange (12x153)

    • Part Number: 90190-SZ5-000

    '


    KA - US - 49 State Spec

    • $14.92

  • 026

    grommet, sub-frame (15mm)

    • Part Number: 91613-SE0-003

    '


    KA - US - 49 State Spec

    • $0.60

  • 027

    bolt, flange (8x18)

    • Part Number: 95701-08018-08

    '


    KA - US - 49 State Spec

    • $0.98
