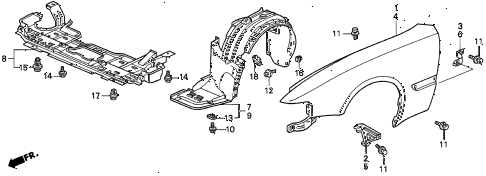

1997 TL BAS3.2 4 DOOR 4AT FRONT FENDER (V6) diagram
  • 001

    panel, r. fr. fender

    • Part Number: 60211-SZ5-A00ZZ

    '


    KA - US - 49 State Spec

    • $524.25

  • 002

    stay, r. fender

    • Part Number: 60214-SW5-000ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    stay b, r. fender

    • Part Number: 60215-SW5-000ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    panel, l. fr. fender

    • Part Number: 60261-SZ5-A00ZZ

    '


    KA - US - 49 State Spec

    • $519.07

  • 005

    stay, l. fender

    • Part Number: 60264-SW5-000ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    stay b, l. fender

    • Part Number: 60265-SW5-000ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    fender, r. fr. (inner)

    • Part Number: 74101-SZ5-000

    '


    KA - US - 49 State Spec

    • $106.33

  • 008

    shield, fr. splash

    • Part Number: 74111-SZ5-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    fender, l. fr. (inner)

    • Part Number: 74151-SZ5-A00

    '


    KA - US - 49 State Spec

    • $85.92

  • 010

    bolt-washer (6x16) (dacro coating)

    • Part Number: 90146-SA7-000

    '


    KA - US - 49 State Spec

    • $1.02

  • 011

    bolt-washer (6x15)

    • Part Number: 90108-SF1-000

    '


    KA - US - 49 State Spec

    • $0.28

  • 012

    screw-washer (5x20)

    • Part Number: 90114-SZ3-000

    '


    KA - US - 49 State Spec

    • $3.92

  • 013

    nut, clip (6mm)

    • Part Number: 90305-SM4-003

    '


    KA - US - 49 State Spec

    • $2.58

  • 014

    bolt, fender

    • Part Number: 90501-SM4-003

    '


    KA - US - 49 State Spec

    • $4.57

  • 015

    clip, splash shield

    • Part Number: 90657-SP0-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 016

    grommet, screw (5mm)

    • Part Number: 90682-SB0-003

    '


    KA - US - 49 State Spec

    • $0.22

  • 017

    clip (7mm)

    • Part Number: 91502-SZ5-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 018

    clip, fender (inner)

    • Part Number: 91512-SX0-003

    '


    KA - US - 49 State Spec

    • $1.55
