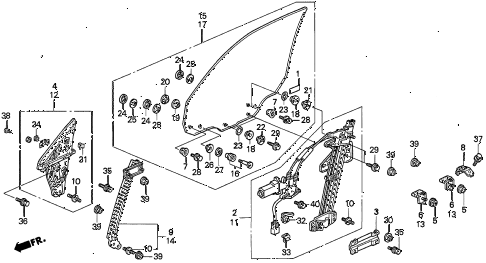

FRONT DOOR WINDOW - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: label, security caution Part Number: 39885-SL5-A10 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.18

Ref #: 002	Honda Part: regulator assy., r. fr. door power Part Number: 72210-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: patch, fr. door regulator (lower) Part Number: 72212-SW5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.98

Ref #: 004	Honda Part: holder, r. door sash Part Number: 72240-SW5-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $109.68

Ref #: 005	Honda Part: nut, glass stopper Part Number: 72242-SL4-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.35

Ref #: 006	Honda Part: plate, r. fr. door glass stopper Part Number: 72245-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $11.37

Ref #: 007	Honda Part: stopper, door glass (upper) Part Number: 72246-SG0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.77

Ref #: 008	Honda Part: stabilizer, door glass Part Number: 72246-SK7-013 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $13.68

Ref #: 009	Honda Part: guide, r. fr. door glass Part Number: 72247-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $82.35

Ref #: 010	Honda Part: bolt, door adjust Part Number: 72249-SK7-000 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.33

Ref #: 011	Honda Part: regulator assy., l. fr. door power Part Number: 72250-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $558.87

Ref #: 012	Honda Part: holder, l. door sash Part Number: 72280-SW5-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $109.68

Ref #: 013	Honda Part: plate, l. fr. door glass stopper Part Number: 72285-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $11.37

Ref #: 014	Honda Part: guide, l. fr. door glass Part Number: 72297-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $82.35

Ref #: 015	Honda Part: glass assy., r. fr. door (green) (aptech) Part Number: 73300-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 016	Honda Part: roller assy., fr. door glass guide Part Number: 73310-ST8-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 017	Honda Part: glass assy., l. fr. door (green) (aptech) Part Number: 73350-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 018	Honda Part: washer, door glass (a)(black) Part Number: 73572-SK8-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.90

Ref #: 019	Honda Part: washer b, door glass (white) Part Number: 73573-SK8-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.90

Ref #: 020	Honda Part: nut, glass plate Part Number: 73574-SK8-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.47

Ref #: 021	Honda Part: bolt, door glass tie Part Number: 73594-SK8-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $13.87

Ref #: 022	Honda Part: bolt, door glass tie Part Number: 73594-SW5-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $15.42

Ref #: 023	Honda Part: washer, door glass Part Number: 73804-SK8-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.20

Ref #: 024	Honda Part: nut, door glass stopper Part Number: 75318-SB2-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.55

Ref #: 025	Honda Part: washer, door glass (b)(black) Part Number: 75318-SK7-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.98

Ref #: 026	Honda Part: washer, door glass (a)(natural) Part Number: 75319-SK7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.98

Ref #: 027	Honda Part: washer, door regulator Part Number: 75357-SB2-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.48

Ref #: 028	Honda Part: bolt-washer (6x17) Part Number: 90001-SB2-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.95

Ref #: 029	Honda Part: bolt, door glass Part Number: 90158-SW5-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.20

Ref #: 030	Honda Part: nut-washer (8mm) Part Number: 90302-SD2-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.72

Ref #: 031	Honda Part: clip, mirror garnish Part Number: 90615-SK7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.70

Ref #: 032	Honda Part: clip, harness band (145.2mm) (natural) Part Number: 91540-SV4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.85

Ref #: 033	Honda Part: clip, connector (orange) Part Number: 91580-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.97

Ref #: 034	Honda Part: grommet, screw (4mm) Part Number: 91619-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.03

Ref #: 035	Honda Part: bolt-washer (6x12) Part Number: 93405-06012-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.18

Ref #: 036	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.90

Ref #: 037	Honda Part: bolt-washer (8x16) Part Number: 93405-08016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.17

Ref #: 038	Honda Part: screw, tapping (4x12) Part Number: 93903-44380 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.53

Ref #: 039	Honda Part: nut-washer (8mm) Part Number: 94071-08080 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.80

Ref #: 040	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.97

Ref #: 001	Honda Part: label, security caution Part Number: 39885-SL5-A10 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.18

Ref #: 002	Honda Part: regulator assy., r. fr. door power Part Number: 72210-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: patch, fr. door regulator (lower) Part Number: 72212-SW5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.98

Ref #: 004	Honda Part: holder, r. door sash Part Number: 72240-SW5-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$109.68

Ref #: 005	Honda Part: nut, glass stopper Part Number: 72242-SL4-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.35

Ref #: 006	Honda Part: plate, r. fr. door glass stopper Part Number: 72245-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$11.37

Ref #: 007	Honda Part: stopper, door glass (upper) Part Number: 72246-SG0-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.77

Ref #: 008	Honda Part: stabilizer, door glass Part Number: 72246-SK7-013 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$13.68

Ref #: 009	Honda Part: guide, r. fr. door glass Part Number: 72247-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$82.35

Ref #: 010	Honda Part: bolt, door adjust Part Number: 72249-SK7-000 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.33

Ref #: 011	Honda Part: regulator assy., l. fr. door power Part Number: 72250-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$558.87

Ref #: 012	Honda Part: holder, l. door sash Part Number: 72280-SW5-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$109.68

Ref #: 013	Honda Part: plate, l. fr. door glass stopper Part Number: 72285-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$11.37

Ref #: 014	Honda Part: guide, l. fr. door glass Part Number: 72297-SW5-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$82.35

Ref #: 015	Honda Part: glass assy., r. fr. door (green) (aptech) Part Number: 73300-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 016	Honda Part: roller assy., fr. door glass guide Part Number: 73310-ST8-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 017	Honda Part: glass assy., l. fr. door (green) (aptech) Part Number: 73350-SW5-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 018	Honda Part: washer, door glass (a)(black) Part Number: 73572-SK8-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.90

Ref #: 019	Honda Part: washer b, door glass (white) Part Number: 73573-SK8-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.90

Ref #: 020	Honda Part: nut, glass plate Part Number: 73574-SK8-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.47

Ref #: 021	Honda Part: bolt, door glass tie Part Number: 73594-SK8-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$13.87

Ref #: 022	Honda Part: bolt, door glass tie Part Number: 73594-SW5-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$15.42

Ref #: 023	Honda Part: washer, door glass Part Number: 73804-SK8-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.20

Ref #: 024	Honda Part: nut, door glass stopper Part Number: 75318-SB2-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.55

Ref #: 025	Honda Part: washer, door glass (b)(black) Part Number: 75318-SK7-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.98

Ref #: 026	Honda Part: washer, door glass (a)(natural) Part Number: 75319-SK7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.98

Ref #: 027	Honda Part: washer, door regulator Part Number: 75357-SB2-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.48

Ref #: 028	Honda Part: bolt-washer (6x17) Part Number: 90001-SB2-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.95

Ref #: 029	Honda Part: bolt, door glass Part Number: 90158-SW5-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.20

Ref #: 030	Honda Part: nut-washer (8mm) Part Number: 90302-SD2-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.72

Ref #: 031	Honda Part: clip, mirror garnish Part Number: 90615-SK7-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.70

Ref #: 032	Honda Part: clip, harness band (145.2mm) (natural) Part Number: 91540-SV4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.85

Ref #: 033	Honda Part: clip, connector (orange) Part Number: 91580-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.97

Ref #: 034	Honda Part: grommet, screw (4mm) Part Number: 91619-SL5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.03

Ref #: 035	Honda Part: bolt-washer (6x12) Part Number: 93405-06012-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.18

Ref #: 036	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.90

Ref #: 037	Honda Part: bolt-washer (8x16) Part Number: 93405-08016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.17

Ref #: 038	Honda Part: screw, tapping (4x12) Part Number: 93903-44380 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.53

Ref #: 039	Honda Part: nut-washer (8mm) Part Number: 94071-08080 Standard Qty.: 012 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.80

Ref #: 040	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.97
