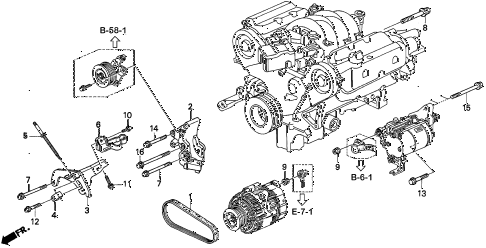

1997 TL BAS3.2 4 DOOR 4AT ALTERNATOR BRACKET (V6) diagram
  • 001

    belt, alternator (bando u.s.a.)

    • Part Number: 31110-PY3-A01

    '


    KA - US - 49 State Spec

    • $22.75

  • 002

    bracket, alternator

    • Part Number: 31112-PY3-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    stay, alternator

    • Part Number: 31113-P5A-000

    '


    KA - US - 49 State Spec

    • $69.13

  • 004

    adjuster, alternator

    • Part Number: 31115-PY3-000

    '


    KA - US - 49 State Spec

    • $14.75

  • 005

    bolt, alternator adjusting

    • Part Number: 31116-PY3-000

    '


    KA - US - 49 State Spec

    • $11.93

  • 006

    clamp e, engine wire harness

    • Part Number: 32754-PY3-900

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    bolt, flange (10x90)

    • Part Number: 95801-10090-08

    '


    KA - US - 49 State Spec

    • $2.40

  • 008

    bolt, special (12x65)

    • Part Number: 90030-PY5-000

    '


    KA - US - 49 State Spec

    • $8.57

  • 009

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec

    • $0.43

  • 010

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 011

    bolt, flange (8x20)

    • Part Number: 95701-08020-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 012

    bolt, flange (8x40)

    • Part Number: 95701-08040-08

    '


    KA - US - 49 State Spec

    • $1.28

  • 013

    bolt, flange (10x45)

    • Part Number: 95701-10045-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 014

    bolt, flange (10x60)

    • Part Number: 95701-10060-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 015

    bolt, flange (10x95)

    • Part Number: 95701-10095-08

    '


    KA - US - 49 State Spec

    • $2.40

  • 016

    bolt, flange (10x100)

    • Part Number: 95701-10100-08

    '


    KA - US - 49 State Spec

    • $2.40
