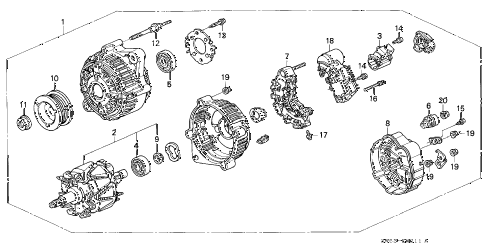

1997 TL BAS3.2 4 DOOR 4AT ALTERNATOR (V6) diagram
Back to Top
alternator (rmd) core id 9761219-727 9761219-722alternator assy. (clb53) (denso)rotor assy.holder assy., brushbearing, rr. generatorbearing, fr. generatorbush, insulationrectifier assy.cover, rr. endcover, bearingpulleynut, pulley lockbolt, stud (6x68)screwscrew-washerscrew-washerscrewscrew, wave washerscrew, wave washerregulator assy.nut-washer (5mm)nut-washer (5mm)nut-washer (5mm)nut-washer (5mm)nut, hex. (8mm)
