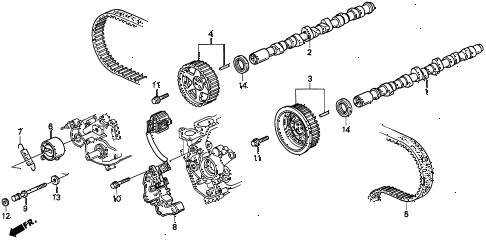

CAMSHAFT - TIMING BELT (V6) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: camshaft, l. Part Number: 14100-P5G-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: camshaft, r. Part Number: 14200-P5G-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: pulley, l. timing belt driven Part Number: 14260-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: pulley, rr. timing belt driven Part Number: 14270-PH7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: belt, timing (unitta) Part Number: 14400-PY3-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $71.22

Ref #: 006	Honda Part: adjuster, timing belt (koyo seiko) Part Number: 14510-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $101.32

Ref #: 007	Honda Part: spring, timing belt adjuster Part Number: 14516-PY3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.08

Ref #: 008	Honda Part: sensor, crank cylinder Part Number: 37840-PY3-026 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $227.98

Ref #: 009	Honda Part: bolt, special timing belt adjuster Part Number: 90016-P0G-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.03

Ref #: 010	Honda Part: bolt, flange (6x20) Part Number: 90021-PL2-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.77

Ref #: 011	Honda Part: bolt, flange (8x20) Part Number: 90031-PH7-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.53

Ref #: 012	Honda Part: rubber, timing belt adjuster Part Number: 90401-634-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.38

Ref #: 013	Honda Part: washer (10.3x25) Part Number: 90501-MB7-610 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.77

Ref #: 014	Honda Part: oil seal (35x50x9.5) (arai) Part Number: 91213-PY3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.37

Ref #: 014	Honda Part: oil seal (35x50x9.5) (nok) Part Number: 91213-PY3-004 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.37

Ref #: 001	Honda Part: camshaft, l. Part Number: 14100-P5G-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: camshaft, r. Part Number: 14200-P5G-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: pulley, l. timing belt driven Part Number: 14260-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: pulley, rr. timing belt driven Part Number: 14270-PH7-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: belt, timing (unitta) Part Number: 14400-PY3-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$71.22

Ref #: 006	Honda Part: adjuster, timing belt (koyo seiko) Part Number: 14510-PY3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$101.32

Ref #: 007	Honda Part: spring, timing belt adjuster Part Number: 14516-PY3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.08

Ref #: 008	Honda Part: sensor, crank cylinder Part Number: 37840-PY3-026 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$227.98

Ref #: 009	Honda Part: bolt, special timing belt adjuster Part Number: 90016-P0G-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.03

Ref #: 010	Honda Part: bolt, flange (6x20) Part Number: 90021-PL2-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.77

Ref #: 011	Honda Part: bolt, flange (8x20) Part Number: 90031-PH7-000 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.53

Ref #: 012	Honda Part: rubber, timing belt adjuster Part Number: 90401-634-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.38

Ref #: 013	Honda Part: washer (10.3x25) Part Number: 90501-MB7-610 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.77

Ref #: 014	Honda Part: oil seal (35x50x9.5) (arai) Part Number: 91213-PY3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.37

Ref #: 014	Honda Part: oil seal (35x50x9.5) (nok) Part Number: 91213-PY3-004 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.37
