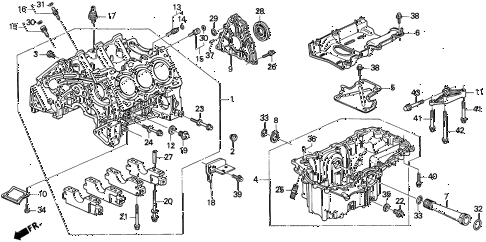

1997 TL BAS3.2 4 DOOR 4AT CYLINDER BLOCK - OIL PAN (V6) diagram
Back to Top
block assy., cylindergrommet, cylinder blockbolt, sealing (12mm)pan assy., oilplate, baffle (lower)plate, bafflepipe, oil pan (inner)circlip (outer) (52mm)cover, rr.plate, breather coverstiffener, enginewasher, sealing boltorifice assy., l. cam journalo-ring (10.8x2.4) (arai)orifice assy., hydraulic rush adjusterorifice assy., hydraulic rush adjusterorifice assy., r. cam journal (matsushita)sensor assy., knock (matsushita)stay g, engine wire harnessbolt, drain plug (28mm)bolt-washer (11x104)bolt, flange (9x86)bolt, plug (14mm)bolt-washer (10x56)bolt-washer (10x41)holder, oil filterbolt, flange (6x22)pin, dowel (13x37)oil seal (80x98x10) (arai)oil seal (80x98x10) (arai)o-ring (38.5x2.4)o-ring (12.5x2.4)o-ring (12.5x2.4)o-ring (9.8x2.4)o-ring (58.4x3.1)o-ring (47x3.1)o-ring (47x3.1)bolt, hex. (6x12)washer, drain plug (14mm)pin, dowel (10x12)pin, dowel (6x10)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x14)bolt, flange (8x30)bolt, flange (8x50)bolt, flange (8x50)bolt, flange (8x80)bolt, flange (12x50)
