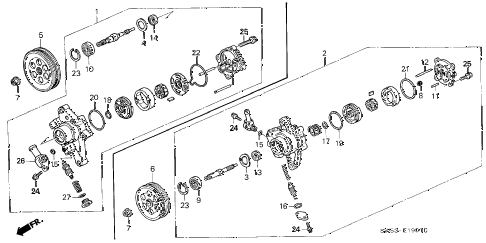

1997 TL BAS3.2 4 DOOR 4AT P.S. PUMP (V6) diagram
Back to Top
p/s pump (rmd) core id p5a s on upper left (american showa)pump sub-assy., power steeringspacer, pump sealpulley, power steering pumpnut, power steering pulleynut, power steering pulleybearing, radial ball (17x40x12)seal, power steering pumpo-ring (13.0x1.9)o-ring (13.0x1.9)o-ring (15.2x2.4)o-ring (51.0x2.4)seal, power steering pump covercirclip (inner) (38mm)circlip (inner) (38mm)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (8x28)bolt, flange (8x28)joint, in.o-ring (15.2x2.4)
