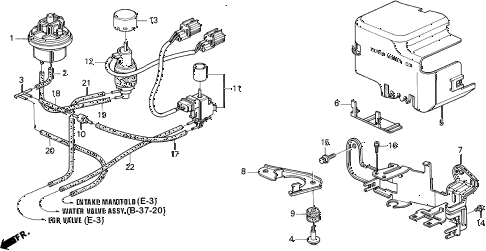

CONTROL BOX - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: valve assy., vacuum control Part Number: 17290-PY3-901 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $80.63

Ref #: 002	Honda Part: holder, solenoid (3.5mm) Part Number: 36013-PE0-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.85

Ref #: 003	Honda Part: joint, three way (f) Part Number: 36016-PC7-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.93

Ref #: 004	Honda Part: bolt d, mounting Part Number: 36017-PM5-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.77

Ref #: 005	Honda Part: cover Part Number: 36020-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $26.73

Ref #: 006	Honda Part: cover a Part Number: 36024-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.27

Ref #: 007	Honda Part: stay Part Number: 36034-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $19.63

Ref #: 008	Honda Part: base Part Number: 36035-PV1-A51 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 009	Honda Part: rubber, mounting (20mm) Part Number: 36053-PM6-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 010	Honda Part: valve, check Part Number: 36145-PM4-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $28.90

Ref #: 011	Honda Part: valve assy., water solenoid Part Number: 36164-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 012	Honda Part: valve assy., frequency solenoid Part Number: 36190-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $178.90

Ref #: 013	Honda Part: filter assy., air Part Number: 36194-PD2-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $22.00

Ref #: 014	Honda Part: screw-washer (5x8) Part Number: 90041-PM5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.45

Ref #: 015	Honda Part: bolt-washer (6x16) Part Number: 93404-06016-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.87

Ref #: 016	Honda Part: screw-washer (5x10) Part Number: 93892-05010-07 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.67

Ref #: 017	Honda Part: bulk hose, vacuum (3.5x8000) Part Number: 95005-35008-10M Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $51.42

Ref #: 001	Honda Part: valve assy., vacuum control Part Number: 17290-PY3-901 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$80.63

Ref #: 002	Honda Part: holder, solenoid (3.5mm) Part Number: 36013-PE0-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.85

Ref #: 003	Honda Part: joint, three way (f) Part Number: 36016-PC7-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.93

Ref #: 004	Honda Part: bolt d, mounting Part Number: 36017-PM5-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.77

Ref #: 005	Honda Part: cover Part Number: 36020-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$26.73

Ref #: 006	Honda Part: cover a Part Number: 36024-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.27

Ref #: 007	Honda Part: stay Part Number: 36034-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$19.63

Ref #: 008	Honda Part: base Part Number: 36035-PV1-A51 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 009	Honda Part: rubber, mounting (20mm) Part Number: 36053-PM6-A01 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 010	Honda Part: valve, check Part Number: 36145-PM4-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$28.90

Ref #: 011	Honda Part: valve assy., water solenoid Part Number: 36164-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 012	Honda Part: valve assy., frequency solenoid Part Number: 36190-P1R-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$178.90

Ref #: 013	Honda Part: filter assy., air Part Number: 36194-PD2-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$22.00

Ref #: 014	Honda Part: screw-washer (5x8) Part Number: 90041-PM5-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.45

Ref #: 015	Honda Part: bolt-washer (6x16) Part Number: 93404-06016-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.87

Ref #: 016	Honda Part: screw-washer (5x10) Part Number: 93892-05010-07 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.67

Ref #: 017	Honda Part: bulk hose, vacuum (3.5x8000) Part Number: 95005-35008-10M Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$51.42
