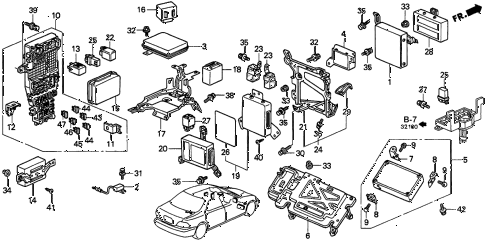

View large diagramHide diagramView diagramView printable catalog
  • 001

    control unit, at

    • Part Number: 28100-P1R-A05

    '


    KA - US - 49 State Spec

    • $878.68

  • 002

    condenser

    • Part Number: 30510-SV2-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    controller, auto cruise

    • Part Number: 36700-SW5-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    timer, radiator fan

    • Part Number: 37740-P1R-A01

    '


    KA - US - 49 State Spec

    • $190.02

  • 005

    control module, engine

    • Part Number: 37820-P1R-A64

    '


    KA - US - 49 State Spec

    • $1,407.37

  • 006

    cover, pcm

    • Part Number: 37821-P1R-A00

    '


    KA - US - 49 State Spec

    • $117.60

  • 007

    bracket a

    • Part Number: 37822-P1R-A01

    '


    KA - US - 49 State Spec

    • $7.28

  • 008

    bracket b

    • Part Number: 37823-P1R-A01

    '


    KA - US - 49 State Spec

    • $7.28

  • 009

    screw

    • Part Number: 37824-P1R-A01

    '


    KA - US - 49 State Spec

    • $2.02

  • 010

    box assy., fuse

    • Part Number: 38200-SW5-A83

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    bracket b, fuse box

    • Part Number: 38202-SW5-000

    '


    KA - US - 49 State Spec

    • $7.28

  • 012

    bracket a, fuse box

    • Part Number: 38203-SL5-A01

    '


    KA - US - 49 State Spec

    • $6.68

  • 014

    control unit, auto door lock (mitsuba)

    • Part Number: 38380-ST7-A01

    '


    KA - US - 49 State Spec

    • $217.00

  • 015

    control unit, integrated (trw)

    • Part Number: 38600-SV7-A12

    '


    KA - US - 49 State Spec

    • $144.17

  • 015

    control unit, integrated (denshi giken)

    • Part Number: 38600-SW5-A02

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    relay assy., main

    • Part Number: 39400-SV4-003

    '


    KA - US - 49 State Spec

    • $86.68

  • 017

    bracket, unit (dr)

    • Part Number: 39405-SW5-A00

    '


    KA - US - 49 State Spec

    • $28.97

  • 018

    control assy., interlock

    • Part Number: 39500-SW5-A01

    '


    KA - US - 49 State Spec

    • $207.50

  • 020

    abs unit

    • Part Number: 39790-SW5-A02

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    bracket, abs unit

    • Part Number: 39791-SW5-A00

    '


    KA - US - 49 State Spec

    • $52.13

  • 022

    relay assy., power (4p no.305)(denso)

    • Part Number: 39792-SM4-013

    '


    KA - US - 49 State Spec

    • $38.32

  • 023

    relay assy., power (5p) (mitsuba)

    • Part Number: 39793-SE3-003

    '


    KA - US - 49 State Spec

    • $40.78

  • 024

    bracket, abs unit

    • Part Number: 39793-SW5-A00

    '


    KA - US - 49 State Spec

    • $58.03

  • 025

    relay assy., power (4p) (056700-7250) (denso)

    • Part Number: 39794-SE0-003

    '


    KA - US - 49 State Spec

    • $50.52

  • 025

    relay assy., power (4p) (rc-2226) (brown) (mitsuba)

    • Part Number: 39794-SL0-J01

    '


    KA - US - 49 State Spec

    • $50.52

  • 027

    relay assy., power (4p)

    • Part Number: 39797-SK3-E01

    '


    KA - US - 49 State Spec

    • $42.13

  • 028

    security unit

    • Part Number: 39880-SL5-A01

    '


    KA - US - 49 State Spec

    • $854.27

  • 029

    stay, heater amplifier

    • Part Number: 79122-SL5-A00

    '


    KA - US - 49 State Spec

    • $6.07

  • 030

    bolt-washer (5x18)

    • Part Number: 90140-SH3-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 031

    bolt, ground (6x16) (washer 12.5mm) (zn)

    • Part Number: 90148-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 032

    screw, tapping (6x14)

    • Part Number: 90150-SX0-005

    '


    KA - US - 49 State Spec

    • $2.27

  • 033

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 034

    grommet, screw (4mm) (yellow)

    • Part Number: 90665-SM4-000

    '


    KA - US - 49 State Spec

    • $2.38

  • 035

    bolt-washer (6x12)

    • Part Number: 93401-06012-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 036

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 037

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 038

    bolt-washer (6x16)

    • Part Number: 93404-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 039

    bolt-washer (6x20)

    • Part Number: 93405-06020-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 041

    screw, tapping (5x16)

    • Part Number: 93903-45320

    '


    KA - US - 49 State Spec

    • $0.55

  • 042

    bolt, flange (6x8)

    • Part Number: 95701-06008-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 043

    fuse, blade (7.5a)

    • Part Number: 98200-30750

    '


    KA - US - 49 State Spec

    • $0.77

  • 044

    fuse, blade (10a)

    • Part Number: 98200-31000

    '


    KA - US - 49 State Spec

    • $0.77

  • 045

    fuse, blade (15a)

    • Part Number: 98200-31500

    '


    KA - US - 49 State Spec

    • $0.77

  • 046

    fuse, blade (20a)

    • Part Number: 98200-32000

    '


    KA - US - 49 State Spec

    • $0.77

  • 047

    fuse, blade (30a)

    • Part Number: 98200-33000

    '


    KA - US - 49 State Spec

    • $0.77
