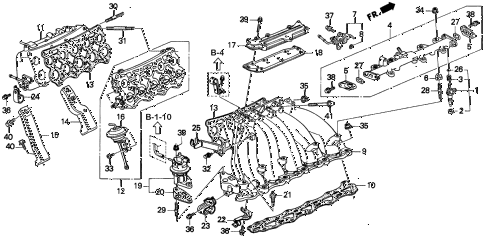

1997 TL PRE2.5 4 DOOR 4AT INTAKE MANIFOLD diagram
  • 001

    injector set, fuel

    • Part Number: 06164-P30-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    seal ring, injector (nok)

    • Part Number: 16472-P0H-A01

    '


    KA - US - 49 State Spec

    • $1.97

  • 003

    cushion ring, injector (nok)

    • Part Number: 16473-P10-A01

    '


    KA - US - 49 State Spec

    • $3.62

  • 004

    pipe assy., fuel

    • Part Number: 16610-PV0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cover, fuel line

    • Part Number: 16623-PV0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    insulator, fuel pipe

    • Part Number: 16638-PH3-S00

    '


    KA - US - 49 State Spec

    • $1.40

  • 007

    regulator assy., pressure

    • Part Number: 16740-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    o-ring, pressure regulator

    • Part Number: 16741-PG7-005

    '


    KA - US - 49 State Spec

    • $2.52

  • 009

    manifold, in.

    • Part Number: 17100-P1R-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    gasket, in. manifold (nippon leakless)

    • Part Number: 17105-PV1-004

    '


    KA - US - 49 State Spec

    • $20.55

  • 011

    manifold b, in.

    • Part Number: 17110-P1R-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    body assy., bypass valve

    • Part Number: 17120-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    gasket, bypass valve (ishino gasket)

    • Part Number: 17121-PV0-003

    '


    KA - US - 49 State Spec

    • $13.55

  • 014

    stay, fr. in. manifold

    • Part Number: 17125-PV1-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    stay, rr. in. manifold

    • Part Number: 17126-PV1-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    diaphragm assy.

    • Part Number: 17129-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    chamber, egr

    • Part Number: 17145-P1R-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    gasket, egr chamber

    • Part Number: 17146-P1R-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    valve set, egr

    • Part Number: 18011-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    gasket, egr valve (ishino gasket)

    • Part Number: 18715-PB2-000

    '


    KA - US - 49 State Spec

    • $7.03

  • 021

    bolt, breathing water

    • Part Number: 19516-PC1-000

    '


    KA - US - 49 State Spec

    • $11.55

  • 022

    clamp, fast idle hose

    • Part Number: 19518-P1R-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    clamp b, engine wire harness (black)

    • Part Number: 32742-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 024

    clamp c, engine wire harness (black)

    • Part Number: 32743-PV1-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 025

    clamp, return hose

    • Part Number: 90681-SL5-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    o-ring (7.3x2.2) (nok)

    • Part Number: 91301-P2F-A01

    '


    KA - US - 49 State Spec

    • $2.32

  • 027

    o-ring, fuel line cover

    • Part Number: 91322-PV0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 028

    bolt, stud (6x35)

    • Part Number: 92900-06035-0B

    '


    KA - US - 49 State Spec

    • $1.07

  • 029

    bolt, stud (8x22)

    • Part Number: 92900-08022-0B

    '


    KA - US - 49 State Spec

    • $1.17

  • 030

    bolt, stud (8x35)

    • Part Number: 92900-08035-1B

    '


    KA - US - 49 State Spec

    • $1.33

  • 031

    bolt, stud (8x45)

    • Part Number: 92900-08045-0B

    '


    KA - US - 49 State Spec

    • $1.43

  • 032

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 033

    screw, pan (5x12)

    • Part Number: 93500-05012-0H

    '


    KA - US - 49 State Spec

    • $0.55

  • 034

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23

  • 035

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 036

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 037

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 038

    bolt, flange (6x18)

    • Part Number: 95701-06018-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 039

    bolt, flange (6x28)

    • Part Number: 95701-06028-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 040

    bolt, flange (8x18)

    • Part Number: 95701-08018-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 041

    bolt, flange (8x50)

    • Part Number: 95701-08050-08

    '


    KA - US - 49 State Spec

    • $1.37
