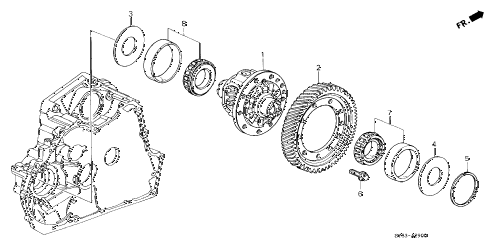

1998 CL BAS2.3 2 DOOR 4AT AT DIFFERENTIAL GEAR (3) diagram
  • 001

    differential

    • Part Number: 41100-PCJ-900

    '


    KA - US - 49 State Spec

    • $366.63

  • 002

    gear, final driven

    • Part Number: 41233-P6H-900

    '


    KA - US - 49 State Spec

    • $236.10

  • 003

    spacer (41x80x1)

    • Part Number: 41381-P7Z-000

    '


    KA - US - 49 State Spec

    • $6.47

  • 004

    spacer (41x76.2x1)

    • Part Number: 41382-P7Z-000

    '


    KA - US - 49 State Spec

    • $6.47

  • 005

    shim s (76mm) (2.05)

    • Part Number: 41438-PX4-700

    '


    KA - US - 49 State Spec

    • $10.68

  • 005

    shim t (76mm) (2.10)

    • Part Number: 41439-PX4-700

    '


    KA - US - 49 State Spec

    • $10.68

  • 005

    shim u (76mm) (2.15)

    • Part Number: 41440-PX4-700

    '


    KA - US - 49 State Spec

    • $10.68

  • 005

    shim a (76mm) (2.20)

    • Part Number: 41441-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim b (76mm) (2.25)

    • Part Number: 41442-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim c (76mm) (2.30)

    • Part Number: 41443-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim d (76mm) (2.35)

    • Part Number: 41444-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim e (76mm) (2.40)

    • Part Number: 41445-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim f (76mm) (2.45)

    • Part Number: 41446-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim g (76mm) (2.50)

    • Part Number: 41447-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim h (76mm) (2.55)

    • Part Number: 41448-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim i (76mm) (2.60)

    • Part Number: 41449-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim j (76mm) (2.65)

    • Part Number: 41450-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim k (76mm) (2.70)

    • Part Number: 41451-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim l (76mm) (2.75)

    • Part Number: 41452-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim m (76mm) (2.80)

    • Part Number: 41453-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim n (76mm) (2.85)

    • Part Number: 41454-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim o (76mm) (2.90)

    • Part Number: 41455-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim p (76mm) (2.95)

    • Part Number: 41456-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim q (76mm) (3.00)

    • Part Number: 41457-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 005

    shim r (76mm) (3.05)

    • Part Number: 41458-PK4-000

    '


    KA - US - 49 State Spec

    • $11.25

  • 006

    bolt, flange (10mm)

    • Part Number: 90003-PA9-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 007

    bearing, special taper (40x80x18.75)

    • Part Number: 91121-P6H-013

    '


    KA - US - 49 State Spec

    • $45.60

  • 008

    bearing, special taper (40x76.2x16)

    • Part Number: 91122-P6H-013

    '


    KA - US - 49 State Spec

    • $45.60
