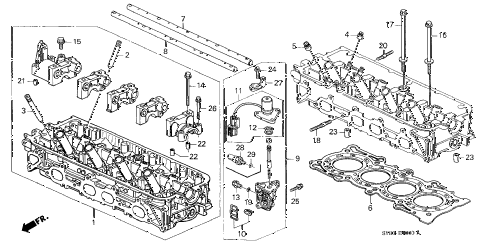

1998 CL BAS2.3 2 DOOR 5MT CYLINDER HEAD diagram
  • 001

    cylinder head assy.

    • Part Number: 12100-PAA-A00

    '


    KA - US - 49 State Spec

    • $1,643.86

  • 002

    guide, valve (over size)

    • Part Number: 12204-PJ7-305

    '


    KA - US - 49 State Spec

    • $10.13

  • 003

    guide, ex. valve (over size)

    • Part Number: 12205-PJ7-305

    '


    KA - US - 49 State Spec

    • $11.12

  • 004

    seal a, valve stem (nok)

    • Part Number: 12210-PZ1-004

    '


    KA - US - 49 State Spec

    • $1.75

  • 005

    seal b, valve stem (nok)

    • Part Number: 12211-PZ1-004

    '


    KA - US - 49 State Spec

    • $1.75

  • 006

    gasket, cylinder head (ishino gasket)

    • Part Number: 12251-PAA-A01

    '


    KA - US - 49 State Spec

    • $81.10

  • 006

    gasket, cylinder head (nippon leakless)

    • Part Number: 12251-PAA-A02

    '


    KA - US - 49 State Spec

    • $81.10

  • 007

    shaft, in. rocker arm

    • Part Number: 14631-P0A-000

    '


    KA - US - 49 State Spec

    • $71.17

  • 008

    shaft, ex. rocker arm

    • Part Number: 14633-P0A-000

    '


    KA - US - 49 State Spec

    • $71.17

  • 009

    valve assy,spool

    • Part Number: 15810-PAA-A02

    '


    KA - US - 49 State Spec

    • $162.38

  • 010

    filter assy., spool valve

    • Part Number: 15825-P0A-015

    '


    KA - US - 49 State Spec

    • $11.62

  • 014

    bolt, flange (8x76)

    • Part Number: 90002-P0A-000

    '


    KA - US - 49 State Spec

    • $0.38

  • 015

    bolt, sealing (10mm)

    • Part Number: 90004-P2J-000

    '


    KA - US - 49 State Spec

    • $3.97

  • 016

    bolt-washer (12x163)

    • Part Number: 90005-PAA-A01

    '


    KA - US - 49 State Spec

    • $5.27

  • 017

    bolt-washer (12x199)

    • Part Number: 90006-PAA-A01

    '


    KA - US - 49 State Spec

    • $5.97

  • 018

    bolt, stud (8x38)

    • Part Number: 90026-PT0-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 020

    bolt, stud (8x25)

    • Part Number: 92900-08025-1B

    '


    KA - US - 49 State Spec

    • $1.23

  • 021

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 022

    pin, dowel (10x16)

    • Part Number: 94301-10160

    '


    KA - US - 49 State Spec

    • $1.33

  • 023

    pin, dowel (14x20)

    • Part Number: 94301-14200

    '


    KA - US - 49 State Spec

    • $1.37

  • 024

    bolt, flange (6x18)

    • Part Number: 95701-06018-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 025

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 026

    bolt, flange (6x45)

    • Part Number: 95701-06045-07

    '


    KA - US - 49 State Spec

    • $1.20

  • 027

    stay, connector hold

    • Part Number: 15816-PAA-A00

    '


    KA - US - 49 State Spec

    • $3.75

  • 028

    switch assy., valve timing oilpressure

    • Part Number: 37250-P07-003

    '


    KA - US - 49 State Spec

    • $79.68

  • 029

    o-ring (13x1.5)

    • Part Number: 91319-PAA-A01

    '


    KA - US - 49 State Spec

    • $2.80
