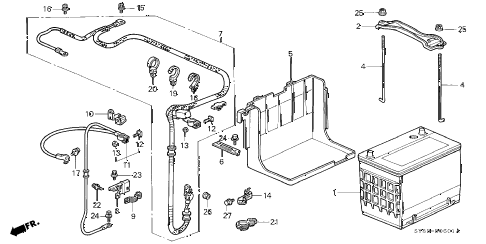

1998 CL BAS3.0 2 DOOR 4AT BATTERY (2) diagram
  • 001

    battery assy. (80d26r-mf)

    • Part Number: 31500-SF1-A1100M

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $111.90

  • 002

    plate, battery setting

    • Part Number: 31512-SV7-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $17.37

  • 004

    bolt, battery setting (210mm)

    • Part Number: 31513-SP0-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.07

  • 005

    box, battery (80d)

    • Part Number: 31521-SV7-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $17.92

  • 006

    bracket set, cable (at)

    • Part Number: 32138-SV7-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.18

  • 007

    cable assy., starter

    • Part Number: 32410-SS8-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $67.55

  • 008

    bracket a, cable

    • Part Number: 32412-SV7-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $25.37

  • 009

    bracket b, cable

    • Part Number: 32414-SS0-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.57

  • 010

    stay b, alternator

    • Part Number: 32415-SV7-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.92

  • 011

    cable assy., ground

    • Part Number: 32600-SS8-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $25.60

  • 012

    bolt, battery terminal

    • Part Number: 32601-SK7-900

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.18

  • 013

    nut, battery terminal

    • Part Number: 32602-SK7-900

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.17

  • 014

    clamp a, engine harness

    • Part Number: 32741-P0A-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $8.82

  • 015

    bolt (6x15)

    • Part Number: 90114-SM4-900

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.63

  • 016

    bolt (5x13)

    • Part Number: 90130-SR3-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.53

  • 017

    bolt, ground (6x12)

    • Part Number: 90153-SE0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.42

  • 018

    clip b, harness band (129.4mm)(dark brown)

    • Part Number: 91507-P01-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.90

  • 019

    clip, harness band (151.5mm) (natural)

    • Part Number: 91540-S30-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.55

  • 021

    clip, cable band (black)

    • Part Number: 91584-SM4-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.90

  • 022

    bolt-washer (6x10)

    • Part Number: 93405-06010-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.92

  • 023

    bolt-washer (6x12)

    • Part Number: 93405-06012-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.93

  • 024

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.02

  • 025

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.23

  • 026

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.43

  • 027

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.00
