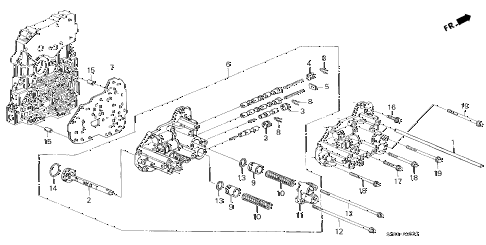

1998 CL PRE2.3 2 DOOR 4AT AT SERVO BODY (3) diagram
  • 001

    pipe, top clutch

    • Part Number: 22744-PX3-000

    '


    KA - US - 49 State Spec

    • $8.43

  • 002

    shaft, shift fork

    • Part Number: 24271-P6H-000

    '


    KA - US - 49 State Spec

    • $44.23

  • 003

    cap (12mm)

    • Part Number: 27122-P6H-000

    '


    KA - US - 49 State Spec

    • $5.42

  • 004

    cap (14mm)

    • Part Number: 27132-P6H-000

    '


    KA - US - 49 State Spec

    • $5.42

  • 005

    seat, valve spring

    • Part Number: 27263-P1V-000

    '


    KA - US - 49 State Spec

    • $2.27

  • 006

    body assy., servo

    • Part Number: 27400-PAX-000

    '


    KA - US - 49 State Spec

    • $351.57

  • 007

    plate, servo separating

    • Part Number: 27412-P6H-000

    '


    KA - US - 49 State Spec

    • $19.90

  • 008

    clip, cap

    • Part Number: 27524-P6H-000

    '


    KA - US - 49 State Spec

    • $2.58

  • 009

    piston, top accumulator

    • Part Number: 27576-PAX-000

    '


    KA - US - 49 State Spec

    • $18.27

  • 010

    spring, top accumulator

    • Part Number: 27577-PAX-000

    '


    KA - US - 49 State Spec

    • $5.25

  • 011

    cover, top accumulator

    • Part Number: 27580-P6H-000

    '


    KA - US - 49 State Spec

    • $18.12

  • 012

    bolt, flange (6x115)

    • Part Number: 90002-P6H-000

    '


    KA - US - 49 State Spec

    • $3.35

  • 013

    o-ring (21.2x2.4) (arai)

    • Part Number: 91331-PC9-003

    '


    KA - US - 49 State Spec

    • $2.23

  • 014

    o-ring (31x2.7) (arai)

    • Part Number: 91344-580-000

    '


    KA - US - 49 State Spec

    • $2.70

  • 015

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 016

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22

  • 017

    bolt, flange (6x35)

    • Part Number: 95701-06035-08

    '


    KA - US - 49 State Spec

    • $1.03

  • 018

    bolt, flange (6x55)

    • Part Number: 95701-06055-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 019

    bolt, flange (6x65)

    • Part Number: 95701-06065-08

    '


    KA - US - 49 State Spec

    • $1.30
