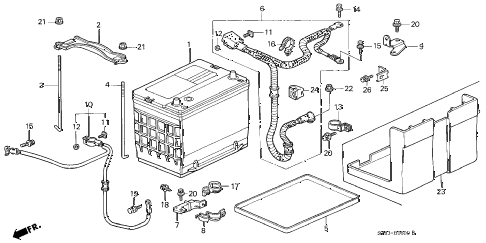

BATTERY (1) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: battery assy. (70d23l-mf) Part Number: 31500-SL5-100M Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $111.90

Ref #: 002	Honda Part: plate, battery setting (70d/80d) Part Number: 31512-SS0-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $17.55

Ref #: 003	Honda Part: bolt, battery setting (195mm) Part Number: 31513-SM4-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.00

Ref #: 004	Honda Part: bolt, battery setting (210mm) Part Number: 31513-SP0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.07

Ref #: 006	Honda Part: cable assy., starter Part Number: 32410-SY8-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $66.37

Ref #: 007	Honda Part: bracket a, cable Part Number: 32412-SS0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $7.57

Ref #: 008	Honda Part: bracket b, cable Part Number: 32414-SS0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $7.57

Ref #: 009	Honda Part: bracket, starter cable Part Number: 32415-SY8-A00 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.02

Ref #: 010	Honda Part: cable assy., ground Part Number: 32600-SY8-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $25.23

Ref #: 011	Honda Part: bolt, battery terminal Part Number: 32601-SK7-900 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.18

Ref #: 012	Honda Part: nut, battery terminal Part Number: 32602-SK7-900 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $3.17

Ref #: 014	Honda Part: bolt (6x15) Part Number: 90114-SM4-900 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $3.63

Ref #: 015	Honda Part: bolt, ground (6x12) Part Number: 90153-SE0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.42

Ref #: 016	Honda Part: clip, harness band (151.5mm) (natural) Part Number: 91540-S30-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.55

Ref #: 017	Honda Part: clip, cable band (black) Part Number: 91584-SM4-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.90

Ref #: 018	Honda Part: bolt-washer (6x10) Part Number: 93405-06010-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.92

Ref #: 019	Honda Part: bolt-washer (6x12) Part Number: 93405-06012-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.93

Ref #: 020	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 021	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.23

Ref #: 022	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.43

Ref #: 023	Honda Part: box, battery Part Number: 31521-S84-A00 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $47.98

Ref #: 024	Honda Part: holder, corrugated (13mm) (dark green) Part Number: 32116-P64-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.50

Ref #: 025	Honda Part: bracket, starter cable Part Number: 32413-S30-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.42

Ref #: 026	Honda Part: bolt-washer (6x16) Part Number: 93403-06016-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 001	Honda Part: battery assy. (70d23l-mf) Part Number: 31500-SL5-100M Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$111.90

Ref #: 002	Honda Part: plate, battery setting (70d/80d) Part Number: 31512-SS0-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$17.55

Ref #: 003	Honda Part: bolt, battery setting (195mm) Part Number: 31513-SM4-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.00

Ref #: 004	Honda Part: bolt, battery setting (210mm) Part Number: 31513-SP0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.07

Ref #: 006	Honda Part: cable assy., starter Part Number: 32410-SY8-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$66.37

Ref #: 007	Honda Part: bracket a, cable Part Number: 32412-SS0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$7.57

Ref #: 008	Honda Part: bracket b, cable Part Number: 32414-SS0-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$7.57

Ref #: 009	Honda Part: bracket, starter cable Part Number: 32415-SY8-A00 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.02

Ref #: 010	Honda Part: cable assy., ground Part Number: 32600-SY8-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$25.23

Ref #: 011	Honda Part: bolt, battery terminal Part Number: 32601-SK7-900 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.18

Ref #: 012	Honda Part: nut, battery terminal Part Number: 32602-SK7-900 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$3.17

Ref #: 014	Honda Part: bolt (6x15) Part Number: 90114-SM4-900 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$3.63

Ref #: 015	Honda Part: bolt, ground (6x12) Part Number: 90153-SE0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.42

Ref #: 016	Honda Part: clip, harness band (151.5mm) (natural) Part Number: 91540-S30-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.55

Ref #: 017	Honda Part: clip, cable band (black) Part Number: 91584-SM4-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.90

Ref #: 018	Honda Part: bolt-washer (6x10) Part Number: 93405-06010-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.92

Ref #: 019	Honda Part: bolt-washer (6x12) Part Number: 93405-06012-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.93

Ref #: 020	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.02

Ref #: 021	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.23

Ref #: 022	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.43

Ref #: 023	Honda Part: box, battery Part Number: 31521-S84-A00 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$47.98

Ref #: 024	Honda Part: holder, corrugated (13mm) (dark green) Part Number: 32116-P64-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.50

Ref #: 025	Honda Part: bracket, starter cable Part Number: 32413-S30-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.42

Ref #: 026	Honda Part: bolt-washer (6x16) Part Number: 93403-06016-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.02
